Cable Reel Puller, Reel Cable Trailer - 08 Specificaton & Trade Terms
| Model | 08 |
|---|
| Place Of Origin | China |
|---|
| Price Term | EX-Work |
|---|
| Payment Term | T/T |
|---|

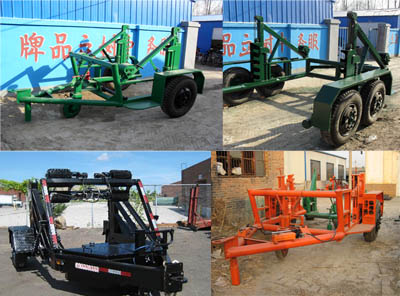

Cable Reel Puller, Reel Cable Trailer
cable Drum Trailer designed with the used of the present organized wheel arrangement for moving cables drums, it’s a convenient device to save labour and keep human life safe in large degree when operating.The Trailer can be towed by a jeep, tractor, or truck, depending upon the rated load of Drum. The traction tire on the font of cable trailer can change angle at random and easy to move.
Mechanical cable drum trailer
Product No. Rated load Applicable drum diameter Applicable drum width Axle bar diameter
HT1011-3 3T ≤φ2400mm ≤1400mm φ76mm
HT1011-5 5T ≤φ2800mm ≤1600mm φ90mm
HT1011-8 8T ≤φ3400mm ≤1800mm φ120mm
HT1011-10 10T ≤φ3600mm ≤2000mm φ150mm
Hydraulic cable drum trailer
Product No. Rated load Applicable drum diameter Applicable drum width Axle bar diameter
HT1012-3 3T ≤φ2400mm ≤1400mm φ76mm
HT1012-5 5T ≤φ2800mm ≤1600mm φ90mm
HT1012-8 8T ≤φ3400mm ≤1800mm φ120mm
HT1012-10 10T ≤φ3600mm ≤2000mm φ150mm
