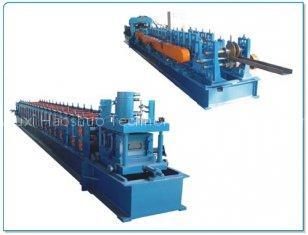

C/Z/U Section Roll Forming Machine

We produce series of Roll Forming Machine for kinds of steel sections like C,Z,U,P purlins, door frame, light keel, etc.

Roll Forming Machine Features:

1) Consists of uncoiler and its base, coil sheet guiding equipment
device, roll forming system, pressing equipment, post-cutting equipment, hydraulic station, controlling system, supporter table
2) Material spec: colored and galvanized steel sheet at yield stress 33KSI
3) Thickness of coil sheet: 0.5 - 4.5 mm
4) Coil width: 1000mm
5) Working speed: 3.0 - 12.0m/min
6) Power requirement:
      a) Main motor power: 7.5-15kW
      b) Hydraulic station power: 5.5kW

7) Passive uncoiler max. capacity: 5,000kg

8) Forming stands:uncertained, as per the design

9) Controlling system: PLC

10) Type of cutting: roll-formed and length-set cutting

11) Machine dimension: about 18,500 x 1,500 x 1,400mm

12) Total weight: about 9,500kg

13) Voltage: 380V 3 phase 60Hz or at buyer's requirement

14)Working flow: decoiling the sheet-sheet guiding-film covering-rollforming-measure length -pressing-cutting the panel-panels to thesupporter
