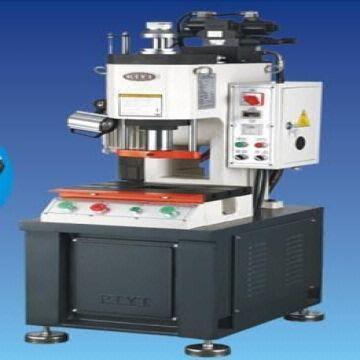

C Frame Fast Speed Hydraulic Punching Machine

1. The C-body design, whole body cast, high rigid.

2. Under cylinder can be configured to facilitate part to taken out.

3. All hydraulic systems, greater pressure, stable and reliable performance.

4. Rod mechanical limit, under pressure stroke adjustable , positioning accuracy 0.02mm.

5. Downward movement with the fast and Feeding speed，the fast forward improve work efficiency；feeding speeds can be adjusted to protect the mold and improve product quality.

6. Safety designed, using both hands to operate, with emergency stop button and jog up and down function.

7.Key and Foot Switch two cycle start modes.

8. Infrared protection can be configured (Optional).

Technical Parameters

Theoretical output pressure 50KN(5t)

Rated oil pressure 10Mpa

Max stroke 150mm

Max Opening Height 230mm

Throat Depth 140mm

Fast-forward speed 120mm/s

Feeding speed 10~80mm/s

Return speed 100mm/s

Ejection speed 110mm/s

Ejection force 10kN(1t)

Ejection stroke 70mm

The size of the working table 410 X 280mm

The height of the working table 950mm

Size of the mold mounting hole Φ32mm

Power of motor 2.2kw

Power(3ΦAC,50Hz)380V

Defferent capacity of the machine ,the special request of the stroke,the working table are also pavailable.

We can also design the specail hydraulic press machine,hydraulic riveting machine,pneumatic machine for your actual needs.

Welcome to contact me at anytime.
