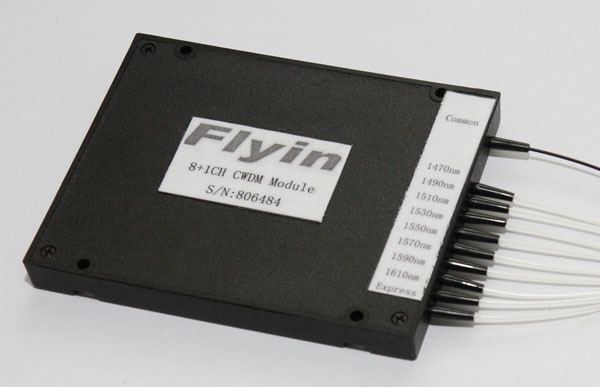

CWDM is a Fiber Optic Equipment product. Key specs — Origin: china.
Product Description
Flyin's WDM series has the features both quality and price, their Features is Wide Operating Wavelength Range Low insertion loss Ultra Flat Wide Passband High channel isolation High stability and reliability Epoxy free on optical path . Applications: System Monitoring WDM system Transmitters and Fiberlasers Fiberoptic amplifier Fiberoptic Instruments.
16-Channel Coarse Wavelength Division Multiplexer Module Performance Specifications Parameter Operating Wavelength (nm) 1270,1290,1310,1330,1350,1370,1390,1410,1430, 1450,1470,1490,1510,1530,1550,1570,1590,1610 Center Wavelength Accuracy (nm) ± 0.5 Channel Spacing (nm) 20 Channel Passband ( bandwidth) (nm) >13 Insertion Loss Over Passband (Excluding Connectors) (dB) 30 Non-adjacent N/A >40 Polarization Dependent Loss (dB) < 0.10 Polarization Mode Dispersion (ps) < 0.1 Directivity (dB) >50 Return Loss (dB) >50 Power Handling (mW) 300 Operating Temperature (°C) 0 ~ +70 Storage Temperature (°C) -40 ~ +85 Dimensions (mm) L142*W102*H14.5
