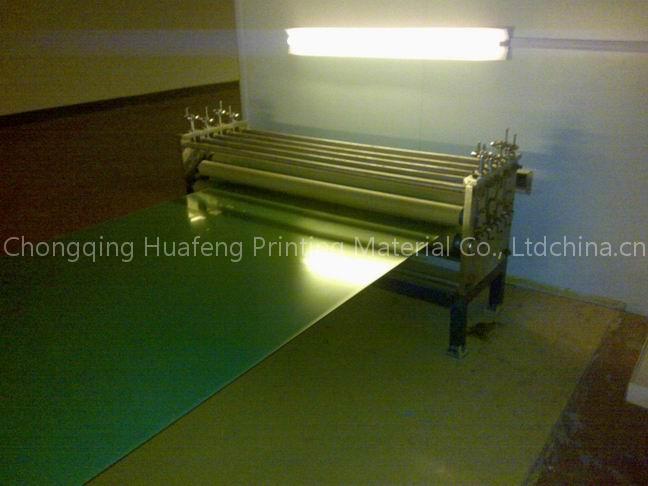

CTCP plate

Positive offset printing plates are researched & manufactured to meet todays demanding pressroom conditions.

Produced on sophisticated continuous process line using only aluminum coils of Southwest Aluminum Group, our inspection system & online control technology guarantees the reliability & consistency of quality.Adopting unique combination of advanced electrochemical graining, anodizing and coating technology enhance the performance of the plate.

It can come up with excellent result on the printing machine with long run impression. UV-CTP(CTcP) Plates

Substrate Southwest aluminum roll

Gauge 0.15, 0.20, 0.25, 0.30, (mm)

Maximum width 1300mm

Spectral sensitivity 350 – 420nm

Sensitivity 60 -110mJ/cm2

Resolution Dot reproduction 2%-99%

Developer universal developer

Developing Temperature 24±1degree

Run length Without baked: 50,000-80,000 copiesAfter Baked:over100,000 copies(Run length depends on printing conditions like press, ink, paper and so on.)

Shelf life 18 months when stored in a dark, cool and dry place Storage and handling Plates are light sensitive and handle under yellow safelight (UV free) till processed. 25±2degree, hold humidity below 65%. Do not store for more than 18 months. Being transported, with light transportation release, crashed, break and falled is forbidden.
