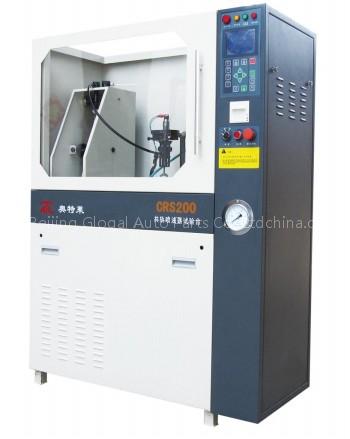

CRS200 -common rail injector test Bench

It's not only have the advantage of being beautiful appearance, having humanized man-machine interface; but also have the characteristics of easy operation, high reliability,simple maintenance and so on.

Features of Products:

Powerful Function:

1. This equipment can test 24V, 12V common rail injector which are used on commercial vehicles and passenger cars. It can also test BOSCH,DENSON, DELPHI products.

2. It can test full-speed fuel capacity,idling speed fuel capacity,pre-injection fuel capacity, fuel leakage capacity and so on. Meanwhile it can test the injector's tightness and atomization Effects

3. Cleaning high-pressure inside of injectors. By doing this it can repair some functions of injectors.

4. Prompt Detection of Injector's Malfunction,Liquid level alarm and control.

5. Print testing parameters.

6. Heat or cool testing oil ( optional).

7. Test bench troubleshooting diagnosis and protection.

High Measurement accuracy

1.Accurate pressure controlling system with pressure less than and equal to 2Mpa.

2. All testing is done with stable state rail pressure.

High Accuracy of fuel level

Accuracy of fuel throughtout: plus or minus2%

Excellent Structure Design and High-quality Supplier system

1. Separation between Control Segment and Function Segment; thus it's much safer and much easier in maintenance.

2. Protection system of pressure safety valve and safety door.

3. Crucial parts of this bench are original Germany products; among which are original BOSCH CR pumps and sensors.

The fuel measurement of CRS200 is mechanical,it is more reliable and isn't easy to be broken comparing with BOSCH EPS200 testing bench. Another advantage of CRS200 is the atomization Effects which EPS200 doesn't have .
