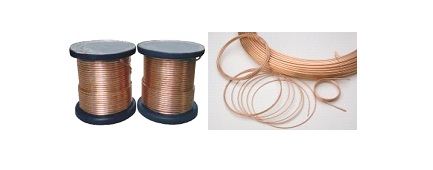

COPPER CAPILLARY TUBING
Specifications
- Origin
- INDIGO METALLOYS, INDIA
- Certifications
- ARAI, DAIKIN, DNV, TUV
- MOQ
- 100 KGS
- Price Term
- EX-Work
- Payment Term
- T/T
- Supply Ability
- 300 TONNES PER MONTH
- Delivery Time
- DEPENIDING UPON THE PRODUCT
- Loading Ports
- NAVASHEVA / MUNDRA
COPPER CAPILLARY TUBING is a Pipe Fittings product. Key specs — Origin: INDIGO METALLOYS, INDIA; Certifications: ARAI, DAIKIN, DNV, TUV; MOQ: 100 KGS; Price Term: EX-Work.
Product Description
1. Copper Capillary Tubing used for restrictor applications use ASTM B360 “Standard Specification for Hard-Drawn Copper Capillary Tube for Restrictor Applications” for quality and production requirements. 2. When further fabrication requires other tempers, tubing can be made to your specifications.
Hand Coil, Spooled Coils (Bulk), Random Bunch Coils Straight Lengths (Boxed) 3. The Standard: Tubing is placed into “Random Bunch” coils with a range of 5 to 20Kgs. per coil. 4. Option: Spooled Coil where random length of tube is wound onto cardboard reels with a range of 100Feet Length per coil.
OPTION 1. Random lengths of straighten tube are produced. 2. Exact lengths of straighten tube are produced. 3. Fabrication such as Copper Bulb attachment or Forming into Coiled Assembly can be quoted.
Standard sizes available for Restrictor Applications are provided in the table below and also listed within ASTM B360-95.
“Small diameters tubing for use in general industrial / mechanical applications have a broader range of OD, ID and wall sizes available and can be quoted to meet your requirement.”
STANDARD ASTM B 360 CONDITION HARD OR ANNEALED. PRODUCT APPLICATION AREAS Refrigeration, Air Conditioning, Thermostat, Relay. CHARACTERISTICS A Commercially pure copper that has been deoxidized with phosphorous in such a manner as to leave a high residual phosphorous content which is not readily susceptible. It has good thermal conductivity.
PACKING STYLE:
1. STANDARD PACKING:
MINI COIL 25 ft Long MEDIUM COIL 50 ft Long LARGE COIL 100 ft Long
