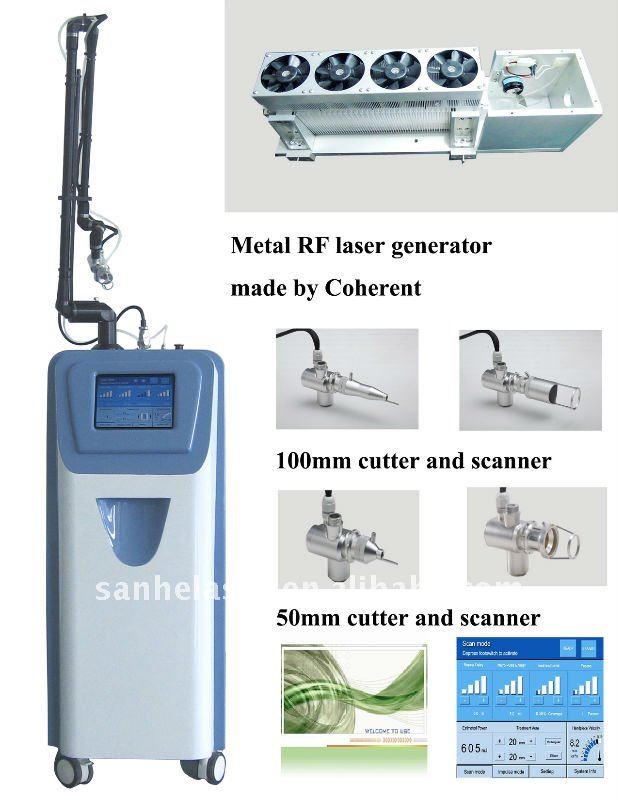

CO2 Ultra Pulse Fractional Laser System

CO2 laser is the “gold standard”for laser resurfacing .It’s effect has been approved more than 20 years ago .Bese on the theory of”Fractional Photothermolsis”,Fractional resurfacing is a new laser treatment modality that creates numerous microscopic thermal injury zones of controlled width, depth, and density that are surrounded by a reservoir of spared epidermal and dermal tissue,the normal skin been left between the injury point. allowing for rapid repair of laser-induced thermal injury.

This unique modality, if implemented with high repetition Ultra Pulse Laser systems, enables high-energy treatments while minimizing risks,it is less pain,less down time and good effect.

Specifications:

Laser Type: Carbon Dioxide Laser

Wavelength: 10.6μ M

Output Power: 30W

Work Mode: CW, Pulse, Ultra Pulse, Fractional

Starting Voltage: ≤ 25kV

Operating Voltage: ≤ 15kV

Operating Current: ≤ 25mA

Focal length of working head: F=50mm/F=100mm

Indication Beam: Diode Laser532nm, 5mW

Transmission System: 7-Articulation Joint Spring Arm

Smoke Exhausting System: Built-in air blow

Cooling System: Water cooling

Continuos: Power 1~30W step adjustable each 1 W

Pulse: Power 1~30W step adjustable each 1W

Interval time: 1~999ms

Ultra pulse: Power 1~30W step adjustable each 1W

Modulated frequency of 1000 Hz

Pulse Duration: 90-1000μ S

Environmental temperature: 5-40C

Power Supply: AC220V50Hz

Relative Humidity: ≤ 80%
