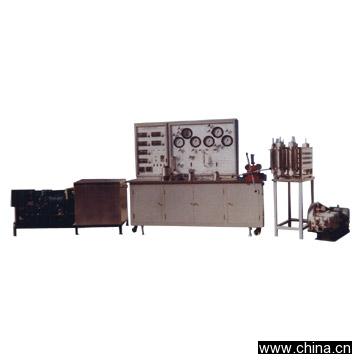

CO2 Extraction Machine

Model No. Product Origin:China

Brand Name Price Terms:FOB Shanghai

Payment Terms:T/T,L/C

Certification Description:Supercritical CO2 Fluid Extraction (SCFE) technology is the most up-to-date technologyfor extraction of herbs, Chinese traditional medicines, essences etc. Underhigh pressure and certain conditions, CO2 is in a state with the character ofboth vapor and liquid, which grants it with excellent extraction power to dissolvethe solutes. SCFE does not require any chemical addition for extraction, so itis clean and it can reserve the nuance of the items develop this SCFE facility through our own effort. As we have more than threedecades experience in producing device for oil field, we are sure the SCFE facilitywe developed is technologically advanced and safe. Extraction Kettle: 0.1L,0.2L,0.3L,0.4L,0.5L,1L,2L,5L/50MPa,10L/32MPa,40MPa Separate Kettle: 0.1L-10L/30MPa,24L/16-30MPa Refine Column: Φ18-25/0.5m-4m/30MPa, Φ35/2m-4m/30MPa, Φ48/6m-10m/30MPa,Φ78/4m-8m/30Mpa. Grads 2,4,6,8,10 are optionCO2 Pump: (1.5L-20L)/h.40 MPa,(20L-50L)/h.50 MpaOperating Temperature: room temp to 85 CAdvantages:1. CO2 in circulation use. Save the CO2 consumption by 50%2. New technics makes possible use out the CO2 form container3. Implement new liquid distribution, maximize the contact and mix between carbondioxide liquid and solute. Improve the extraction efficiency by shortening theprocess you have any question please contact us. We would like to see you at the factory.
