Listing ID#39202
ModelLP3
CategoryAuto Electronics

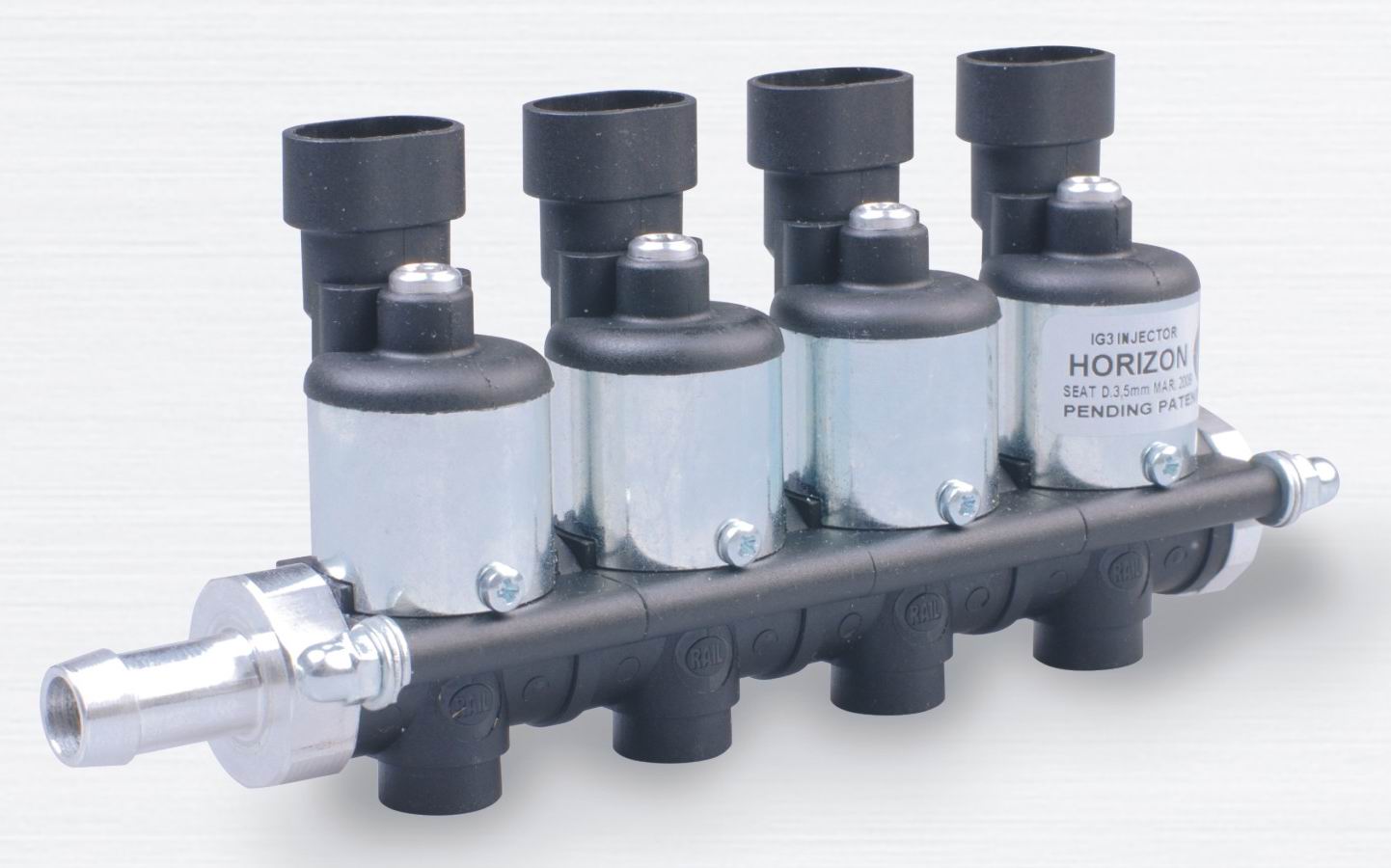

CNG injection rail
Specifications
- Origin
- China
- Price Term
- EX-Work
- Payment Term
- T/T
Quick answer
CNG injection rail is a Auto Electronics product. Key specs — Origin: China; Price Term: EX-Work; Payment Term: T/T.
Product Description
TECHNICAL PARAMETERS 1) Working pressure：0.5 – 2.0 bar 2) Max pressure：4.5 bar 3) Alimentation：12V±15% 4) Inlet gas fitting：Rubber hose Φ10mm / Φ16mm 5) Outlet gas fitting ： Calibrated nozzles M8*1, external Φ7mm 6) Calibrated hole (for nozzles)：Φ1.0-3.5mm(±0.25mm) 7) T range： -20 / + 120° C 8) Opening time: 2.5ms±5% 9) Closing time: 2.0ms±5%
