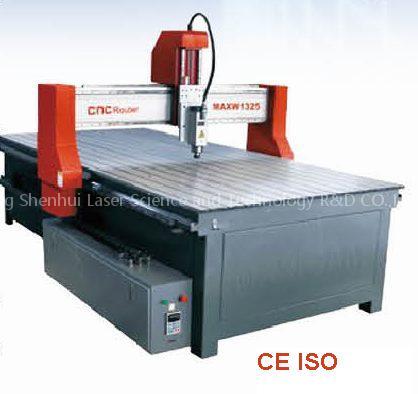

CNC router woodworking machine is a Furniture Making Machines product. Key specs — Origin: China.
Product Description
Advantage:1. adopt linear square guideway which can adjustable gap and can change track, the life can be not less than 10 years,Comprehensive performance is the iron platform with the box structure to ensure high rigidity, high precision3. performance ,high power spindle motor, low noise,strong cutting4.Compatible Type3/Artcam/Castmate/Proe/CAXA / Wentai and other power restored, power outagers continued carving, processing time forecast and other functions, the real human design.
Applicable industry1. widely used in furniture processing , home decoration, woodworking decoration, wooden arts and carfts, stone carving processing etc.. industriesthe machine is used for large areas single-body,end milling, 3D relief, cutting production etc.. technical parameters>Model SH-1325 X Y Z-axis travel 1300 * 2500 * 200mm Linear guideway type Circular guide rail/Square guide rail(optional)Maximum speed 2800mm/min Max engraving speed 2000mm/min Max feeding height 200mm Resolution 0.005mm Repeat positioning accuracy 0.05mm Command G code.
U00. Mmg. Plt.
Eng Software operating environment WINDOWS2000/XP Voltage 380V/220V/110V Spindle power 1.5KW/2.2KW/3KW/4.5KW/6KW (optional) Spindle speed 0-24000rpm/min Stepper motor Stepper motor / Servo motor (optional) Machine size 1900 * 3200 * 1450mm Package size 2050 * 3500 * 1500mm Control system Nctudio/DSP(Optional)Weight 1000kg Optional accessories Cylinder rotary attachment/ Dust collecter/ Metal water tank/Vacuum adsorption system
