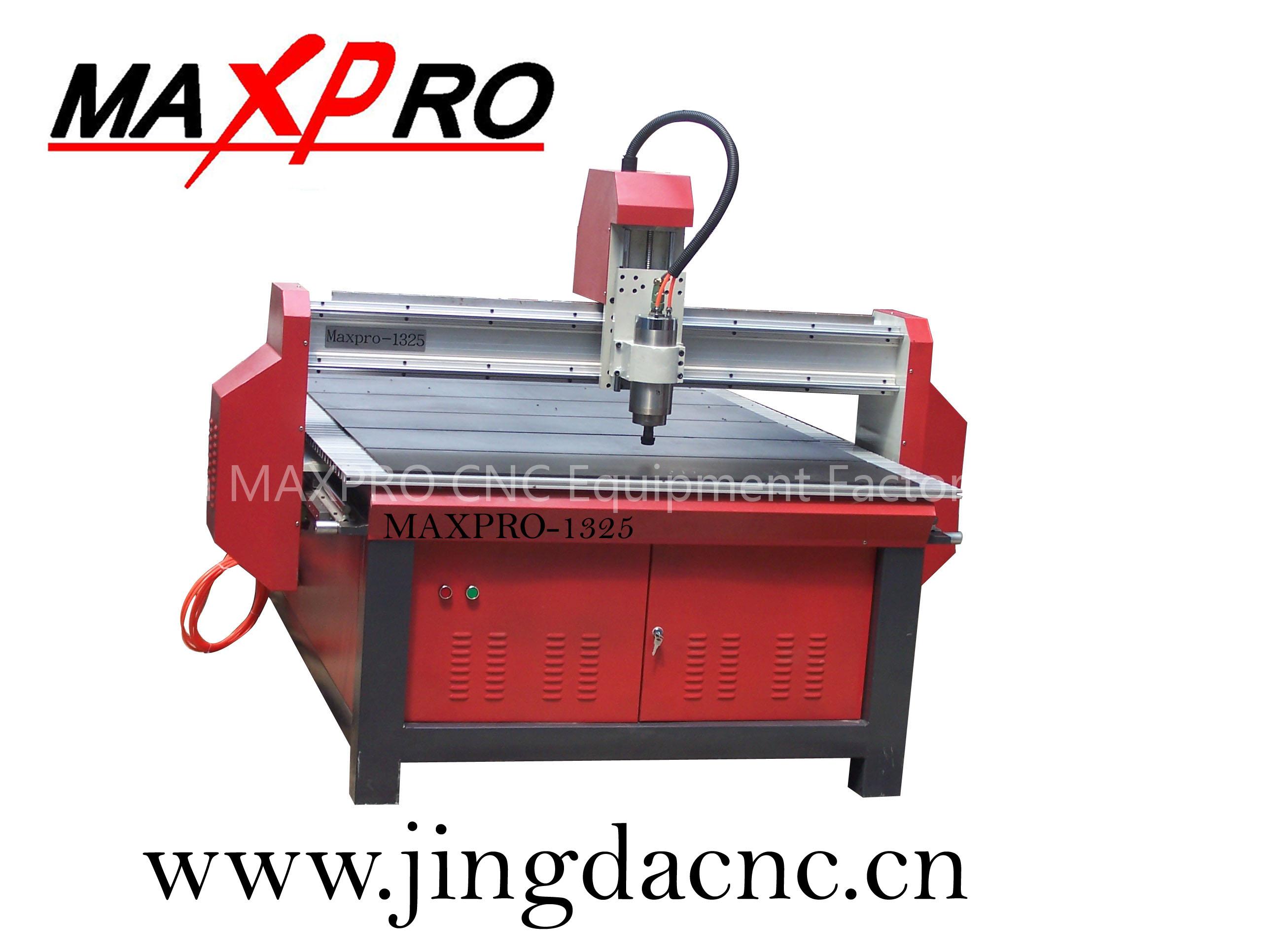

CNC router for engraving arylic
Specifications
- Brand
- MAXPRO
- Origin
- Jinan,China
CNC router for engraving arylic is a Furniture Making Machines product. Key specs — Brand: MAXPRO; Origin: Jinan,China.
Product Description
Advantage:
lathe bed platform casting, supporting dense, bearing force average, reduce machine distortion
lHigh precision: ball screw drive with a high precision, the precision can reach 0.05mm
lHigh quality parts: using the liner round guide rail, high precision;
lGood compatibility: Compatible software CAD/CAM ,such as Typ3 , ArtCam, Castmate, UcanCam,Artcut engraving software, Coredraw, etc. It can manufacture fancy embossment, and 3D arts.
Specification
Model | MP-6090 | MP-1212 | MP-1218 | MP-1224 | MP-1325 |
XYZ working area | 600*900*100mm | 1200*1200*150mm | 1200*1800*150mm | 1200*2400*150mm | 1300*2500*200mm |
Table size | 740*1170mm | 1340*2020mm | 1340*2020mm | 1340*2680mm | 1440*3000mm |
Max travel speed | 4m-5m/min | 4m-5m/min | 5m-6m/min | 5m-7m/min | 5m-7m/min |
Max engraving speed | 2m-3m/min | 2m-3m/min | 3m-3.5m/min | 3m-3.5m/min | 3m-3.5m/min |
Resolution ratio | 0.005mm | 0.005mm | 0.005mm | 0.005mm | 0.005mm |
Reposition accuracy | 0.05mm | 0.05mm | 0.05mm | 0.05mm | 0.05mm |
Drive model | Ball screw, round guide rail | ||||
Work-holding | By fixture | ||||
Surrouding for software | Windows98/2000/xp | ||||
Command | G*Code.u00*.mmg*.plt | ||||
Control system | Ncstudio | ||||
Voltage | AC220V/50Hz | AC220V/50Hz | AC220V/50Hz | AC220V/50Hz | AC380V/50Hz |
Main axle power rate | 1.5/2.2KW | 1.5/2.2KW | 1.5/2.2KW | 1.5/2.2KW | 3/4.5KW |
Main axle rotating speed | 0-24000rpm/min | 0-24000rpm/min | 0-24000rpm/min | 0-24000rpm/min | 0-24000rpm/min |
Work mode | Stepper | Stepper | Stepper | Stepper | Stepper |
