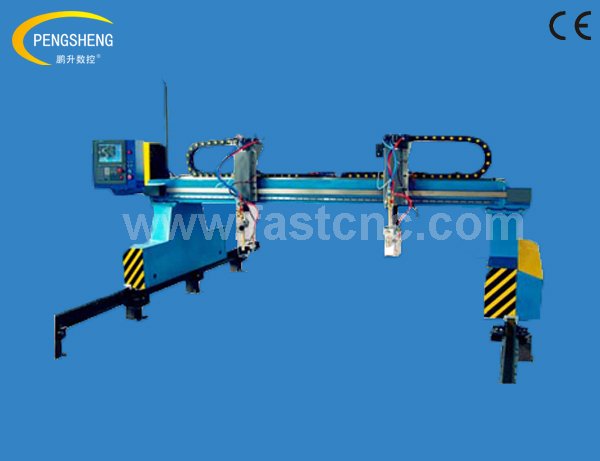

CNC plasma cutter

1. Welded lathe bed of thick-wall profiled steel, more solid and stable. 2 .Reasonable lathe table design, 10 mm thickness steel plates fixed on lathe table covered by cast sheath with spikes. Steel plates will not be damaged even under raging flame. The level difference of whole double-deck platform remains in 0-1.5mm. 3.

Advanced material inclined discharging design. All finished work pieces and fragments slide into both sides of tunnel for safe and convenient collection. 4 .Panasonic Servo motor, Taiwan servo speed reducing device and high accuracy rack transmission.Lower noise, stable and accurate coordinate movement.

5 .Start control system made in Sino-US joint venture and Germany design Software FASTCAM with auto material saving function. 6.

American Cut-Master power supply(Power: 40A/60A/120A/200A) together with high sensitive arc pressure adjuster.Self-adjusting to choose the best distance between plasma head and work piece automatically in order to ensure cutting accuracy. 7 .Best choice for all kinds of different thickness material and heterotypic sheet cutting.

Technical parameter: Model PC-2040P Engraving area 2000mm*4000mm Processing thickness 0.5-30mm Engraving speed 100-8000mm/min Voltage 18.5kw Input voltage 3phase380V Power frenquency 50HZ Current Plasma 200A The mode of file transfer USB Interface Working method ched arc striking

Applicable Industries: Ship Building,Construction Equipment,Transport Equipment, Aerospace Industry, Bridge Building, military industrial, wind power, Structural Steel, Boiler containers, Agriculture Machinery, Chassis electrical cabinets, Elevator manufacturers, Textile Machinery, Environmental protection equipment,ect.

Applicable Materials: Galvanized sheet, white steel, titanium plate, carbon steel, stainless steel, alloy steel, composite metal.
