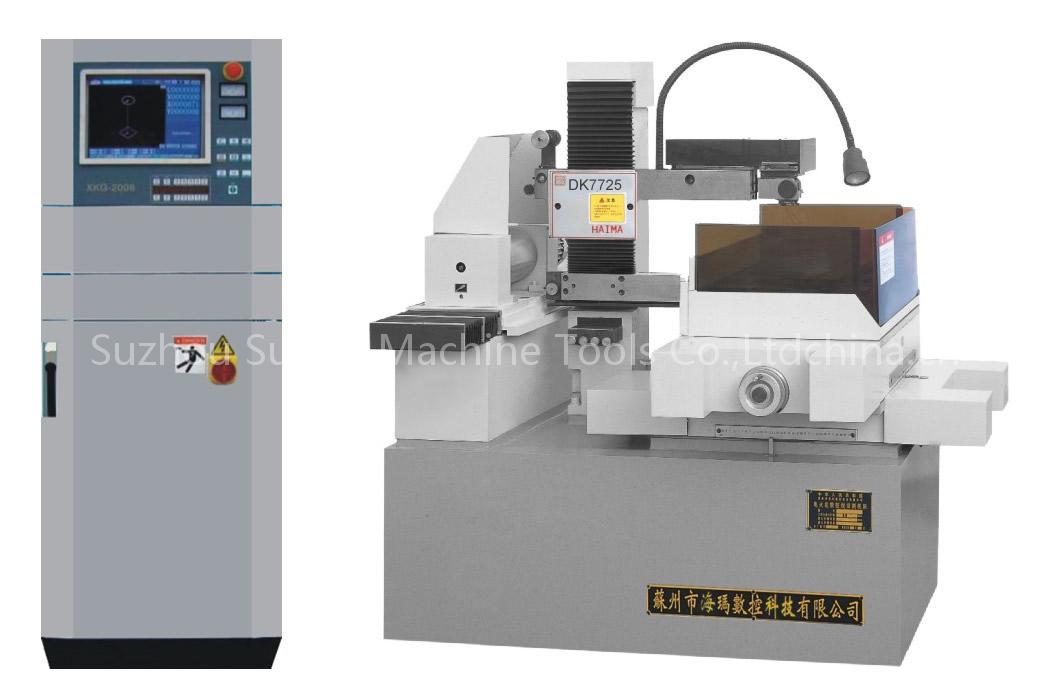

CNC molybdenum Wire cut EDM machine DK7725
Specifications
- Brand
- Sunda
- Origin
- Suzhou,China
CNC molybdenum Wire cut EDM machine DK7725 is a Other Farm Machines product. Key specs — Brand: Sunda; Origin: Suzhou,China.
Product Description
Item | Unit | DK7725A | DK7725B | DK7725C | DK7725D | DK7725E | DK7725F | |
Worktable size (L×W) | mm | 530×360 | 530×360 | 530×360 | 530×360 | 530×360 | 530×360 | |
Table travel(X×Y) | mm | 320×250 | 320×250 | 320×250 | 320×250 | 320×250 | 320×250 | |
Max. workpiece thickness | mm | 300 | 500 | 300 | 500 | 300 | 500 | |
Max. angle /plate thickness | degree/mm | 0 | 0 | ±3°/100 | ±3°/100 | ±30°/100 | ±30°/100 | |
Max. machining speed | mm²/min | 160 | 160 | 160 | 160 | 160 | 160 | |
Precision | Octagon | mm | ≤0.015 | ≤0.015 | ≤0.015 | ≤0.015 | ≤0.015 | ≤0.015 |
taper | mm | ≤0.04 | ≤0.04 | ≤0.04 | ≤0.04 | ≤0.06 | ≤0.06 | |
Max. working current | A | 8 | 8 | 8 | 8 | 8 | 8 | |
Roughness, three cutting | μm | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | |
Wire diameter | mm | Ф0.12~Ф0.2 | Ф0.12-Ф0.2 | Ф0.12-Ф0.2 | Ф0.15-Ф0.2 | Ф0.15-Ф0.2 | Ф0.15-Ф0. | |
Wire travelling speed | m/min | 4-11 | 4-11 | 4-11 | 4-11 | 4-11 | 4-11 | |
Load of table | Kg | 300 | 300 | 300 | 300 | 300 | 300 | |
Working solution | SaponificationLiquid | |||||||
Power supply | 3N-380V/50Hz | 3N-380V/50Hz | 3N-380V/50Hz | 3N-380V/50Hz | 3N-380V/50Hz | 3N-380V/50Hz | ||
Power consumption | KVA | 2 | 2 | 2 | 2 | 2 | 3 | |
Wire guide frame | Adjustable(Z axis drived by motor is optional) | |||||||
Machine dimensions | mm | 1400×950×1600 | 1400×950×1600 | 1400×950×1600 | 1400×950×1600 | 1400×950×1600 | 1400×950×1600 | |
Package dimensions | mm | 1790×1390×1950 | 1790×1390×1950 | 1790×1390×1950 | 1790×1390×1950 | 1650×1210×2000 | 1650×1210×2000 | |
Machine weight | Kg | 1400 | 1400 | 1400 | 1400 | 1400 | 1600 | |
Controller type | XKG-2008 | |||||||
