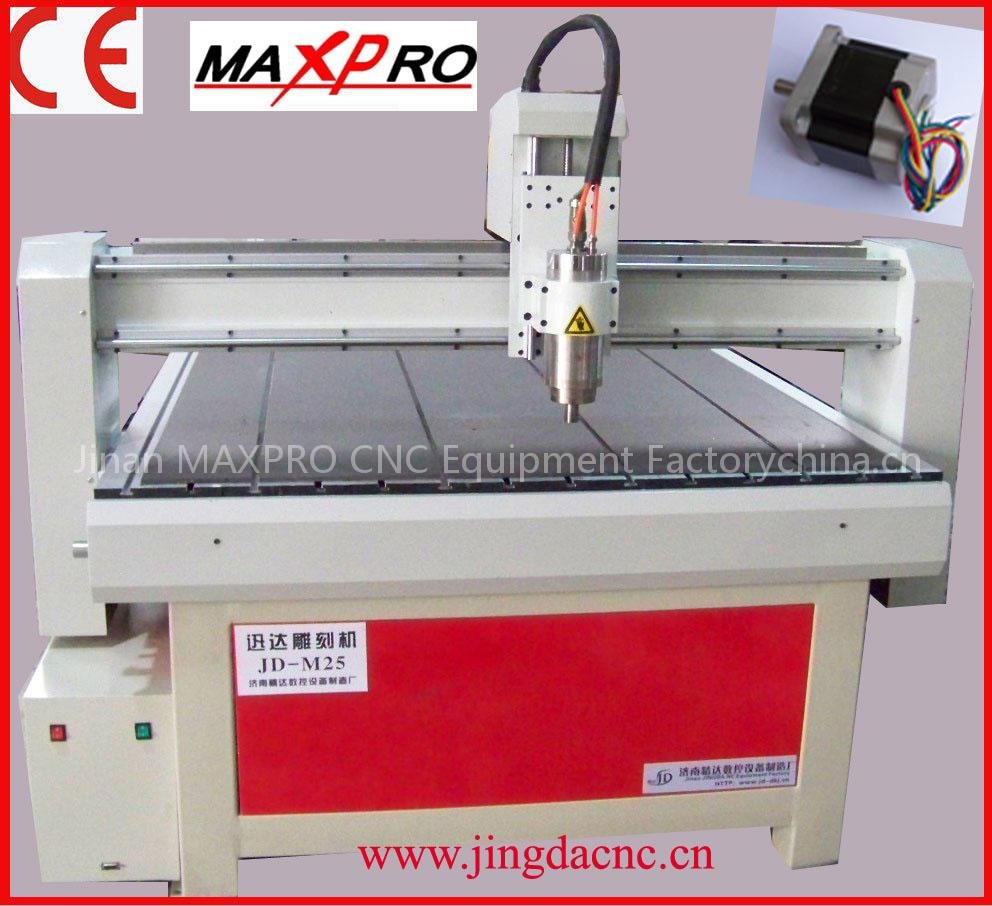

CNC engraving machine with high precision
Specifications
- Brand
- MAXPRO
- Origin
- Jinan China
CNC engraving machine with high precision is a Other Plastic & Rubber Machinery product. Key specs — Brand: MAXPRO; Origin: Jinan China.
Product Description
3.High quality parts: using the line round guide, high precision; ,low noise,good cooling effect.
4.Good compatibility: Compatible software CAD/CAM ,such as Typ3 , ArtCam, Castmate, UcanCam,Artcut engraving software, Coredraw, etc. It can manufacture fancy embossment, and 3D arts.
Specification
Model | MP-1224 |
XY working area | 1220*2400 |
Z working area | >80mm |
Table size | 1340*2680mm |
Drive system | Ball screw, round guide rail |
Max travel speed | 5m-7m/min |
Max engraving speed | 3m-3.5m/min |
Resolution ratio | 0.005mm |
Reposition accuracy | 0.05mm |
Max feeding heigh | 110mm |
Surroudings for software | Windows98/2000/xp |
Power(not include the spindle) | 550w |
Power | AC220V/50Hz |
Main axle power rate | 1.5/2.2KW |
Main axle rotating speed | 0-24000rpm/min |
Work mode | Stepper |
