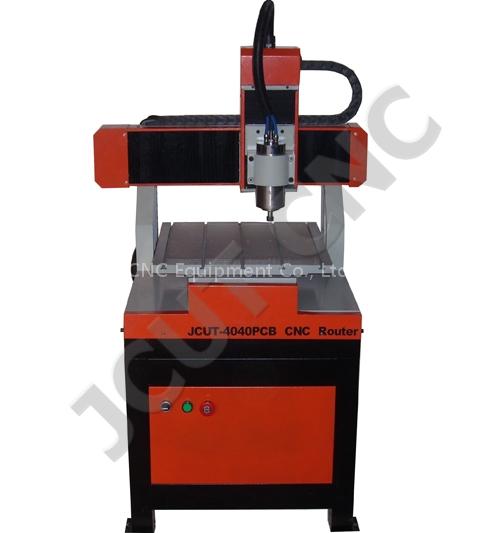

CNC engraver CNC router machine new

CNC Router JCUT-4040B Optional items: Rotary axis 1) Machine body: Whole cast aluminium 2) Work dimensions: 400 x 400mm 3) Body dimensions: 850 x 850 x 1350mm 4) Z-axis working area: 45mm 5) Max. Feeding height: 80mm or bigger 6) Cut thickness of material: ≤ 20mm 7) Max.

Speed: 8000mm/min 8) Working speed: 0 - 3000mm/min 9) Mechanical precision: 0.01mm 10) Software: Type 3 software, Artcut software, Artcam software 11) Max.

Power consumption: 1800W 12) Power source: 220V/50Hz or 110V/60Hz 13) Driver type: Stepper motor 14) Spindle: 800W variable speed, water-cooled motor 15) Spindle speed: 0 - 24000rpm 16) Blade diameter: 3.175mm, 4mm, 6mm 17) Control system: Ncstudio 18) Command: G code, u00, mmg, plt 19) Relative humidity: 30% - 75% 20) Net weight: 160Kg 21) Gross weight: 180Kg Applications: Can be used for advertisement engraving, advertisement cutting, stone processing, Cu and AL molding, mold manufacturing, wood processing, craft manufacturing, light box cutting, building mold cutting, indoor decoration cutting, light equipment mold processing, sign and mark manufacturing, acrylic board processing, as well as stamp cutting.
