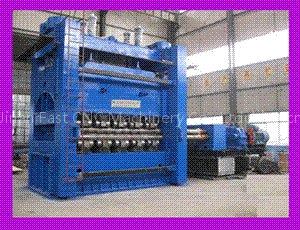

CNC Shipbuilding Plate Leveling Machine Bending Machine

CNC Shipbuilding Plate Leveling Machine Features:(Model W43D16X3200) Roller Type Unparalleled Plate Straightening Machine Yield: 400MPa Quantity: 1 unit Levelling rollers: 2103400mm 11no.s Pinch rollers: 2103400mm 2no.s Center Distance Of Levelling Rollers: 235mm Supporting Rollers diameter: 230mm Supporting Roller no.: up and down each 5 rows Levelling size: 4163200mm Levelling

Speed: 6m/min Levelling Precision: 1.5mm/m2 Main

Power: Levelling rollers and pinch rollers driven 90 Kw 1set AV Motor: Levelling roller pressed adjustment 2 sets Levelling rollers and pinch rollers driven 1 set

Type: ZQ Reducer Levelling roller pressed adjustment 2 sets

Type: CAVEX Main Part

Material: Levelling Roller/Traction roller:: 40Cr Quenching hardness HRC52-55. Any requirement, please feel free to inquiry us! Mail us at : jinanfast at
