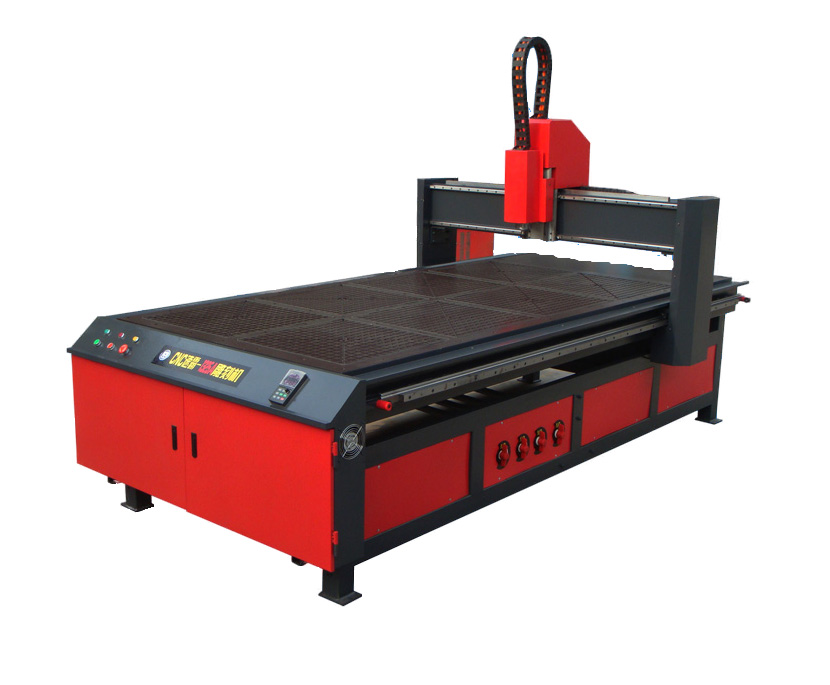

CNC Router - SUBA1325A

1. Features:
(1).The bed lathe is made of cast steel, analysed and designed with FEA, relieving stress, so the working table is more stable

(2).Working table has vacuum system, The table is made of bakelite. This material is high-temperature-resistant and Corrosion-resistant. The table can suck different kinds of nonmetal material, and it is divided into six working areas. each area can be used independently or together with others which could save the energy and improves the working efficiency.

(3).There are two stepper motors and double linear bearing to drive the Y shaft, one motor will one linear bearing at one side which improve speed and make the Y shaft more stable, so it supports heavy-duty cut.

(4). The cnc system adopts DSP technique, transfer the signal by USB. CNC system can remember and preserve when electricity is cut off. 128 flash memory guarantees the machine work without computer.

(5). High speed and efficiency, max speed without engraving is up to 30000/min,while the speed when engraving wave plank can reach 20000mm/min.
2. Application:
These machines are suitable for engraving and cutting Density board, Door, computer table, furniture and nonmetal material and nonferrous metal, such as copper and aluminum.
3. Data
Model: SUBA-1325A
Working area: 1300x2500x200mm
Spindle motor: 4.5Kw inverter-driven spindle motor
cooled by water
Running speed: 30000mm/min
Rotating speed: 24000rpm
Engraving tools: 3.175mm/6mm
Software: Type3,Artcam, Ucancam, Caxa, Mastercam, UG
Maching accuracy: ±0.04mm
Weight: 1100KG
Overall dimension: 1500x3100x1750mm
