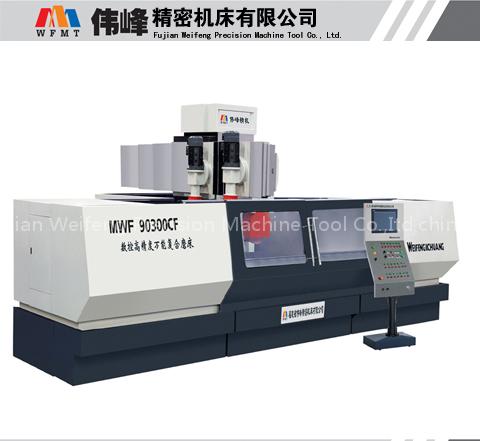

CNC.PLC High precision universal composites grinding machine

project unit MWF90160C MWF90250C MWF90300C
working table mm 900×1600 900×2500 900×3000
mm 900×1600×675 900×2500×675 900×3000×675
mm 1900 2800 3300
m/min 3-25 3-25 3-25
4×22 4×22 4×22
Kg 2500 4000 4700
grinding head mm 850 850 850
m/min 0.15-3.75 0.15-3.75 0.15-3.75
m/min 0.05-3.75 0.05-3.75 0.05-3.75
mm 0.001 0.001 0.001
mm 0.001 0.001 0.001
m/s 35 35 35
mm 500×75×203 500×75×203 500×75×203
elecric machine power KW 50.65 50.65 50.65
KW 11 11 11
work precision mm 900:0.006 900:0.006 900:0.006
μm Ra:0.08 Ra:0.08 Ra:0.08
parameter of
compiate
machine mm 5250×4100×3273 8100×4100×3273 9218×4100×3273
kg 23000 28000 32000
kg 25000 30000 35000
