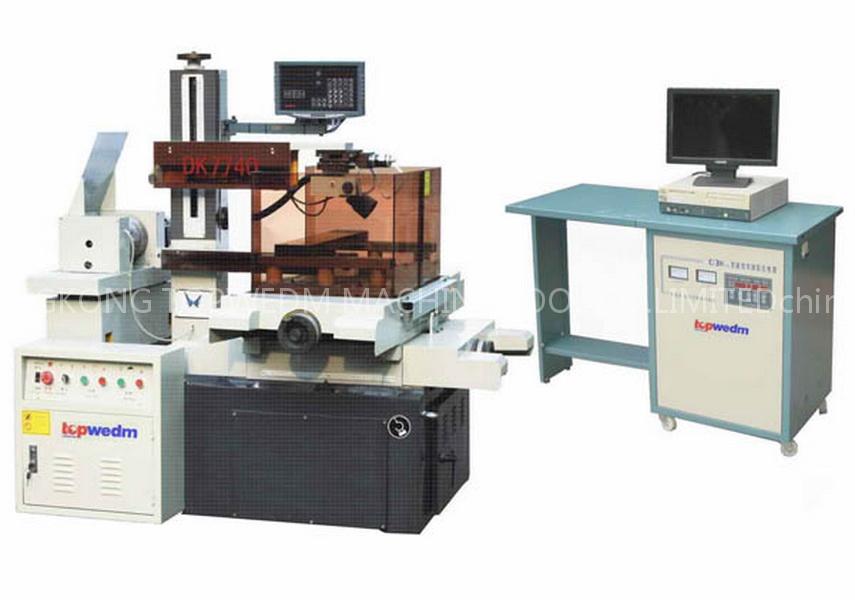

CNC High Speed wire cutting machine is a Moulds product. Key specs — Origin: china.
Product Description
Applications High speed wire cutting machines apply in various fields,mainly metalworking like, 1.Moulds manufacturing 2.Home appliance 3.Equipment and apparatus 4.Accessaries 5.Other metal machining Suitable to process conductive metal moulds, complex metal parts and templates with high precision, high toughness and difficult processing; Can cut plane, bevel, top and bottom different shaped surface, greatly expand applications..
Main functions: Make features of big taper, high thickness, high efficiency, high precision and new structure etc, Multiple protection and alarm functions: It includes automatic protection for the thread canister overstep, automatic stop protection for the thread-broken in the machine tool, automatic going back protection for short-circuit, memory protection for electricity broken, automatic alarm for short-circuit, automatic alarm for thread broken and automatic alarm for machine stop after finishing machining.These technologies lead in this industry.
Main features: Based on CAD simulated stress strength calculation, optimize the design for strength enforcement, in order to optimize the static and dynamic mechanic properties of main machine. Ball bearing linear guide designing for X,Y track, superb self lubrication, reduced static friction; effectively avoid the crawling at machining.
Applied high precision seamless ball and lead screw for movements along X,Y axis. Aborative designed water-proof idler pulley, efficiently improved the service life of idler pulley and the bearing.
Specifications Worktable dimension:700*500mm Travel of X,Y,Z axes:400*500*400mm Max workpieces' dimension:700*500*400mm Max workpieces' weight:800kgs Travel of U,V axes:30*30mm Diameter of elctrode:0.12~0.25mm Dimension of plant:1700*1400*1700mm Standard power supply:380V±10%/50Hz/2KVa Control system Communications Integrator(CI):RS232/NIC/USB ISO code:3B/G code File format:AutoCAD/DXF/IGES/AutoP Accessaries Standard Accessaries:Inner hexagon spanner /Cross screw driver/Clamp/Cutting fluid/ Wire tighten wheel/Molybdenum wire /Water jet plate/Crank/Pulley guide/T screw/ Conductive block Optional:Automatic Voltage Regulator/Diamond thread guide/Filter/Linear scale
