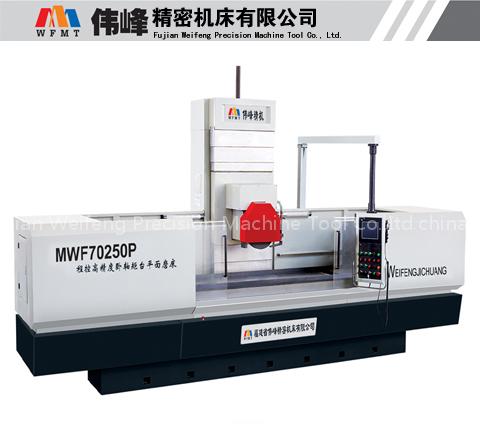

CNC High Precision Surface Grinder ,Grinding machine is a Other Farm Machines product. Key specs — Origin: China; Price Term: EXW.
Product Description
project unit MWF70160C MWF70250C MWF70300C working table Size of work top (width×length) mm 700×1600 700×2500 700×3000 Largest griding size(width× length×height) mm 700×1600×675 700×2500×675 700×3000×675 Maximum longitudinal stroke of working table mm 1900 2800 3300 Speed of working table(stepless) m/min 3-25 3-25 3-25 T-type slot of working table (slot number×width) 3×18 3×18 3×18 Load-bearing of working table Kg 2400 3100 3650 grinding head Maximum distance form spindle center of grinding wheel to work top mm 850 850 850 Cross feed speed of grinding head(stepless) m/min 0.15-3.75 0.15-3.75 0.15-3.75 Vertical feed speed of grinding head (stepless) m/min 0.05-3.75 0.05-3.75 0.05-3.75 Minimum cross feed quantity of grinding head mm 0.001 0.001 0.001 Minimum vertical feed quantity of grinding head mm 0.001 0.001 0.001 Ginding speed m/s 35 35 35 Size of grinding wheel (outside diameter×width×inside diam mm 500×75×203 500×75×203 500×75×203 elecric machine power Total power of electrice machine KW 28.7 28.7 28.7 Electric machine power of grinding head KW 11 11 11 work precision Parallel degree of machining surface to base level mm 700:0.005 700:0.005 700:0.005 Work surface roughness μm Ra:0.08 Ra:0.08 Ra:0.08 parameter of compiate machine Dimension of machine tool(lengh×width×height) mm 5050×2150×3250 6800×2150×3250 8100×2150×3250 Net weight kg 18000 21000 25000 Gross weight kg 20000 23000 27000
