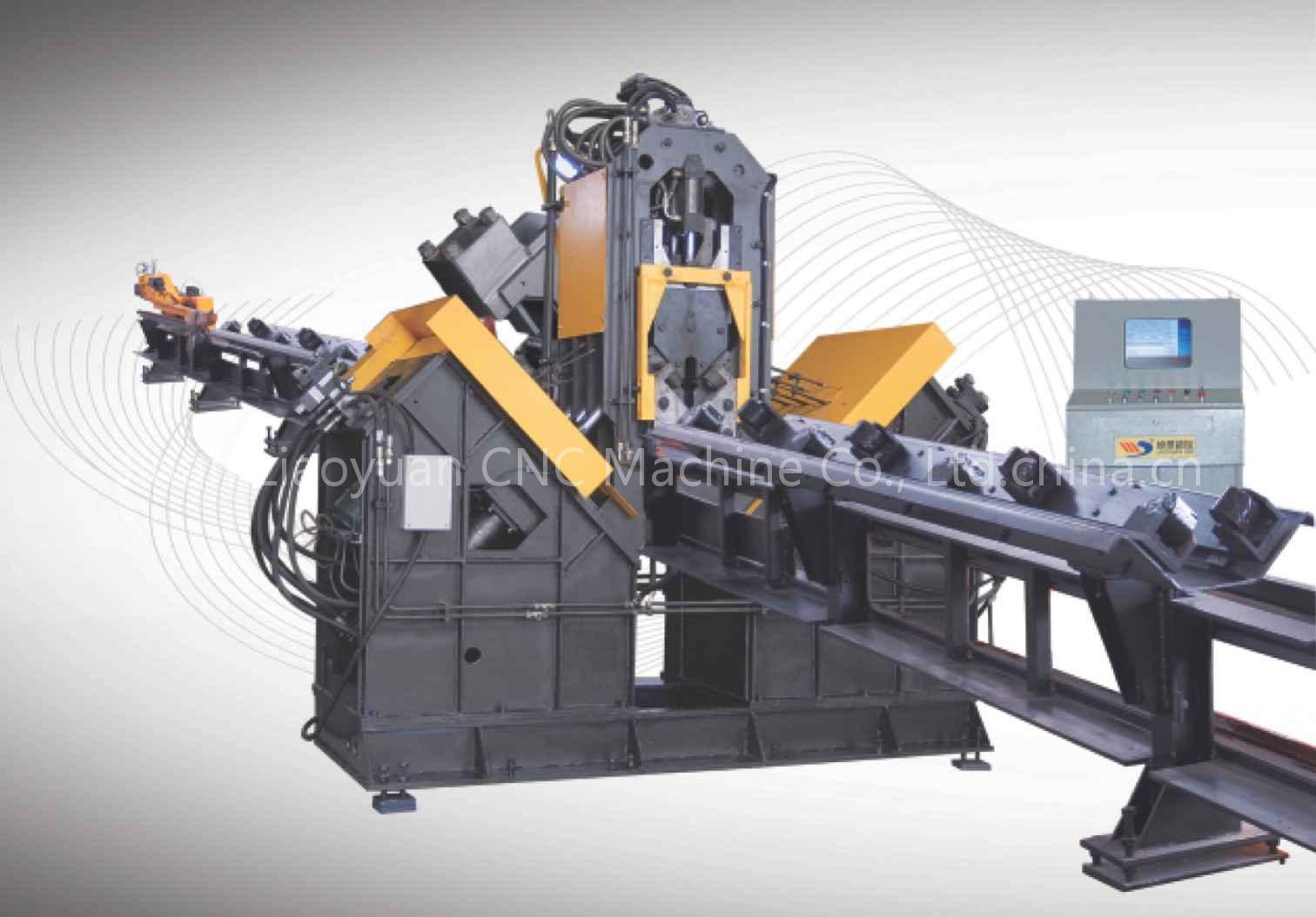

CNC Angle Marking & Drilling Production Line APL-2532

2.With CNC and servo motor it can get high efficiency and steady precision.

3.The main hydraulic, pneumatic and electrical elements are all imported.

4.Easy program by using, automatic data from software directly, Computer with English display and can show work piece figure, easy for operation.

Product Advantages:

1 Rotation speeds of all spindles are stepless adjustment realized by frequency converter,feeding speeds are also stepless adjustment realized by flow control valves

2 Rapid feed,working feed and rapid back of drilling spindles can be automatiacally converted.

3 There is a marking unit in the drilling line.Marking stadia can be preset conveniently.

4 Hydrualic system serves for marking,pressing of workpiece,drilling feed. All main components are of imported from abrad. Cooling system with automatic cirling is adopted to prolong the life or drills.

5 Control system includes many units,such as host computer, CNC system, ACservo motor, PLC,monitoring swith for outside etc. Machining programcan be generated automatically in compteras long as operator inputs the dimensions of workpiece, which can be converniently stored, called up, displayed and communicated according to the different workpiece.

Main Technical Specifications
