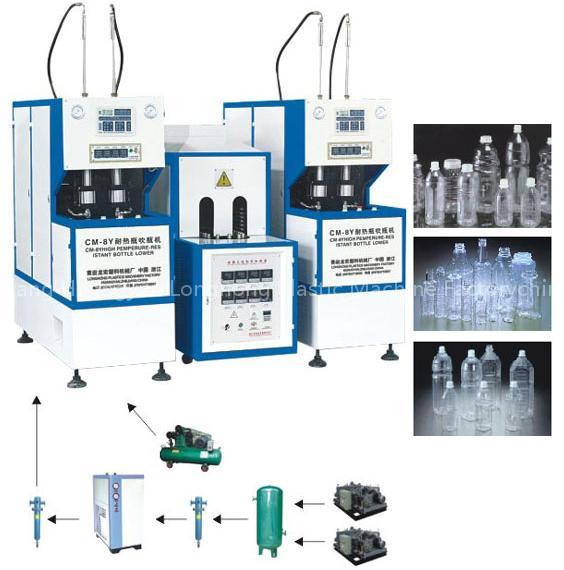

CM-8Y Hot filling blow molding machine

CM-8Y heat-resistant bottle blow molding machine is suitable for producing PET plastic containers and bottles from 10-2000ml. It is widely used to produce the carbonated bottle, mineral water pesticide bottle oil bottle cosmetics, wide-mouth bottle .

1,Adopting double crank to adjust mould,heavy locking mould,stable and fast,adopt infrared oven to heat the perform,the perform rotated and heated equally
2,The air system has been divided intotwo parts:pneumatic action part and bottle blow part to meet the different requirements for the action and blow. It can provide sufficient and steady high pressure for bloeing large irregular shaped bottle.
3,The machine is also equipped with muffler and oiling system to lubricate the machanical part of the machine
4,The machine can be operated in the step-by-step mode and the semi-auto mode
5,The machine is small with low investment,easy and safe to operate
6,This machine can producing PET bottle which can resist high temperature,such like 92 centigrade has solved the problem of the traditional juice and other liquid food packing.

MAIN PARAMETER:
1, VOLUME: 0.1-2L
2, OUTPUT: 800-1000pcs/h
