Listing ID#10037047
ModelCCGE-5038
CategoryAutomotive & Motorcycle Parts Agent

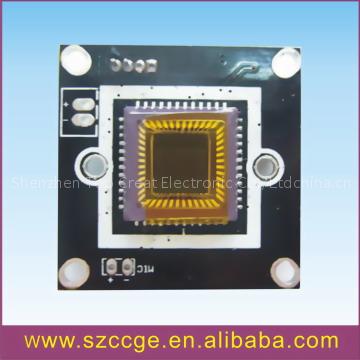

CMOS Camera Module for Car Rearview Camera
Specifications
- Brand
- CCGE
- Origin
- China(Mainland)
- Price Term
- FOB
Quick answer
CMOS Camera Module for Car Rearview Camera is a Automotive & Motorcycle Parts Agent product. Key specs — Brand: CCGE; Origin: China(Mainland); Price Term: FOB.
Product Description
Model | CMOS Camera Module CCGE-5038 |
Image sensor | 1/4”CMOS OV7950 |
Horizontal Resolution | 420 TVL |
Signal System | NTSC |
Validity Pixel | NTSC:656(H)×492(V) |
Sync System | Inter-sync |
Sensitivity | 3.0V/ |
Gamma Characteristic | AUTO |
Scanning System | NTSC:525 Lines, 60 Field/Sec |
Electronic Shutter | NTSC :1/60-1/100,000Sec |
S/N Ratio | >48dB(AGC OFF) |
Video Output | Composite Signal 1.0(Vp-p)/7.5(Ω) |
AWB | Auto |
Operating Temperature | -20℃ ~ +60℃ RH95% Max |
Storage Temperature | -20℃ ~ +70℃ RH95% Max |
Power Supply | 12V/60mA |
Dimension | 18mm*18mm, 32mm*32mm,21mm |
