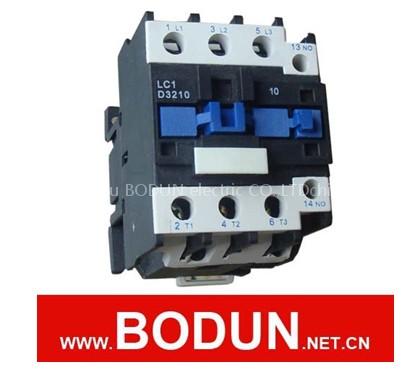

Name: CJX2 AC Contactor
SKU: CJX2

Product Description

nbsp; CJX2 AC Contactor
1.660V AC 50/60Hz.
2.Rated Current up to 620A.
3.Comply to IEC60947-4-1
nbsp;

CJX2 AC Contactor

Type		CJX2-D09	CJX2-D12	CJX2--D18	CJX2--D25	CJX2-32	CJX2-D40	CJX2-D50	CJX2-D65	CJX2-D80
Rated working Current(A)	AC3	9	12	18	25	32	40	50	65	80
Rated working Current(A)	AC4	3.5	5	7.7	8.5	12	18.5	24	28	37
Standard Power ratings Of 3-phase Motors 50/60Hz in Category AC-3	220/230V	2.2	3	4	5.5	7.5	11	15	18.5	22
	380/400V	4	5.5	7.5	11	15	18.5	22	30	37
	415V	4	5.5	9	11	15	22	25	37	45
	500V	5.5	7.5	10	15	18.5	22	30	37	55
	660/690V	5.5	7.5	10	15	18.5	30	33	37	45
Rated Heat current(A)		20	20	32	40	50	60	80	80	125
Electrical Life	AC3(X10000)	100	100	100	100	80	80	60	60	60
Electrical Life	AC4(X10000)	20	20	20	20	20	15	15	15	10
Mechanical Life(x10000)		1000	1000	1000	1000	800	800	800	800	600
Number of the contacts		3P+NO					3P+NC+NO
Number of the contacts		3P+NC					3P+NC+NO
