CF(compact flash) to IDE adapter: 40p male
Specifications
- Brand
- SINTECH
- Origin
- China
- Price Term
- FOB
CF(compact flash) to IDE adapter: 40p male is a Electrical Equipment & Supplies product. Key specs — Brand: SINTECH; Origin: China; Price Term: FOB.
Product Description

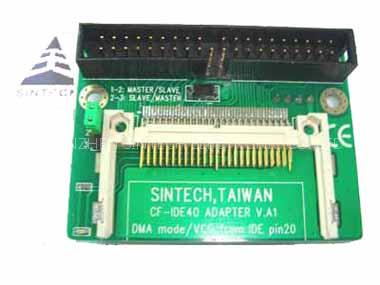

STCI4001 40P MALE SINGLE SLOT CF To IDE(IDE-CF) Adapter is an adapter for connecting a compact flash memory card to a 3.5'' host interface, aiming at educational sectors, IT development, and the embedded technology enthusiast to enable the use of a compact flash card as an IDE hard drive.
Specification & Features
> Support Single CF in this adapter
> Very helpful for embedded system designers and engineers
> No driver required
> Master / Slave mode selection
> Male , 40-pin IDE connector with 4-pin power connector on-board
> You can boot from Dos/Windows/Linux with CF, same as IDE hard drives, but much faster Master/Slave jumper ,with DMA MODE,support CFI/CFII cards
> Power input: +5V, floppy disk Drive power connector
