Listing ID#10160017
ModelCT-302
CategorySurveillance Products
Quick answer

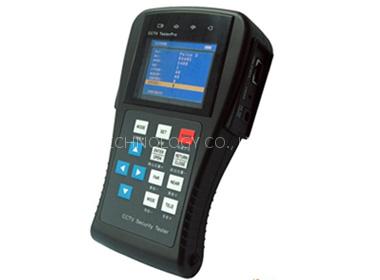

CCTV Tester is a Surveillance Products product. Key specs — Brand: SWJ; Origin: China (Mainland).
Product Description
| MODEL | CT-302 CCTV Security Tester |
| Video Test | |
| Signal mode | NTSC/PAL (Auto Adjust) |
| Display | 2.8 inch TFT-LCD ,960 x 240 resolution |
| LCD adjust | Adjustable brightness, contrast, color of LCD |
| Video IN/OUT | 1 channel BNC Input & 1 channel Output |
| Video Output Mode | 1.0 Vp-p |
| Video Level test | |
| Level test | Video signals measured in IRE or mV |
| Power Output | |
| Power output | DC12V, 1A |
| Audio Test | |
| Audio input | 1 channel Audio input |
| PTZ controller | |
| Communication | RS232, RS422 simplex and RS485 |
| PTZ Protocol | Compatible with more than 20 protocols such as PELCO-D/P, Samsung, Panasonic, Lilin, Yaan, etc.customized |
| Baud Rate | 150,300,600,1200,2400,4800,9600,19200bps |
| Video Signal Generation | |
| Color bar generation | Output 1 channel color bar video signal for testing monitor |
| UTP CABLE TEST | |
| UTP cable test | Test UTP cable connection state and display in the screen. Read the number of the test box. |
| PTZ data Capture and display | |
| PTZ Data Test | Capture and Analyze the PTZ data sent from controlling device |
| PTZ address scanning | |
| PTZ address scan | Search up the ID of PTZ camera |
| POWER | |
| Power Adapter | DC5V, 2A |
| Battery | 1 pcs Lithium Ion Polymer Batteries, 3.7V DC2800mAh |
| Rechargeable | 4 hours recharging time, work for 15 hours |
| Low Consumption | Sleeping mode, display battery power state |
| Other Parameters | |
| Work Temperature | -10℃---+50℃ |
| Work Humidity | 30%-90% |
| Dimension | 166mmx95mmx48mm |
