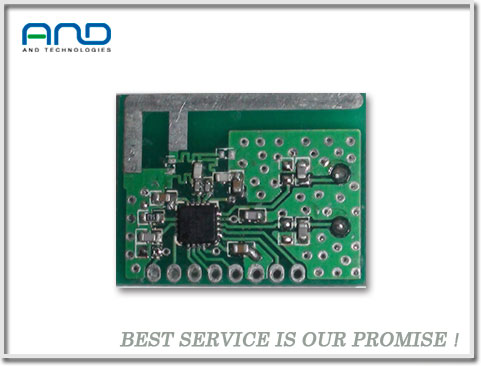

CC2500 2.4G RF Module
Listing ID#42142
ModelRF module
CategoryElectronic Components, Accessories

CC2500 2.4G RF Module

Specifications

Origin
China
Price Term
EX-Work
Payment Term
T/T
Request Quote
Quick answer

CC2500 2.4G RF Module is a Electronic Components, Accessories product. Key specs — Origin: China; Price Term: EX-Work; Payment Term: T/T.

Product Description

1)CC2500 module, 2.4GHz module, PCB antenna, SPI interface 2)2.4G RF Wireless Transmitter Module

CC2500 module, 2.4GHz module, PCB antenna, SPI interface,2.4G RF wireless Module CC2500 This module can be applied for: --2400-2483.5 MHz ISM/SRD band systems --Consumer electronics --Wireless game controllers --Wireless audio --Wireless keyboard and mouse --RF enabled remote controls RF Performance --High sensitivity (104 dBm at 2.4 kBaud,1% packet error rate) --Low current consumption (13.3 mA in RX, 250 kBaud, input well above sensitivity limit) --Programmable output power up to +1 dBm --Excellent receiver selectivity and blocking performance --Programmable data rate from 1.2 to 500kBaud --Frequency range: 2400 2483.5 MHz
