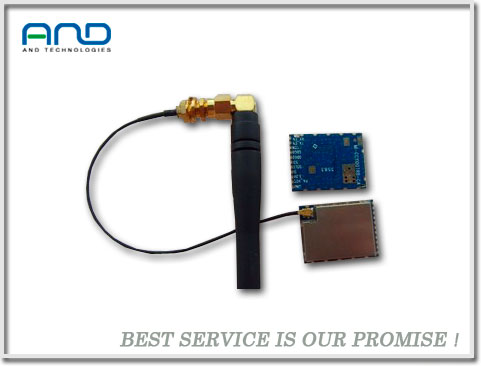

CC1100 long range wireless receiver module
Specifications
- Origin
- China
- Price Term
- EX-Work
- Payment Term
- T/T
CC1100 long range wireless receiver module is a Electronic Components, Accessories product. Key specs — Origin: China; Price Term: EX-Work; Payment Term: T/T.
Product Description
1)433MHz CC1100+PA with high quality 2)TI RF solution, SPI interface 3)Frequency bands: 300-348
1)433MHz CC1100+PA with high quality 2)TI RF solution, SPI interface 3)Frequency bands: 300-348
CC1100+PA 433MHz module, TI RF solution, SPI interface
This module can be applied for: --Ultra low-power wireless applications --operating in the 315/433/868/915 MHz --ISM/SRD bands --Wireless alarm and security systems
--Industrial monitoring and control
--Wireless sensor networks --AMR Automatic Meter Reading --Home and building automation
RF Performance --High sensitivity (111 dBm at 1.2 kBaud, 868 MHz, 1% packet error rate) --Low current consumption (14.4 mA in RX, 1.2 kBaud, 868 MHz) --Programmable output power up to +10dBm for all supported frequencies --Excellent receiver selectivity and blocking performance --Programmable data rate from 1.2 to 500kBaud --Frequency bands: 300-348
