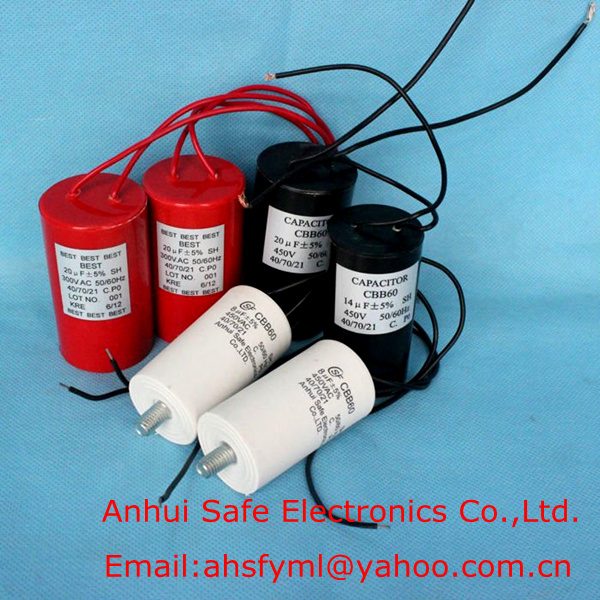

CBB60 running capacitor for lighting

The capacitor takes heavy-edge metallized Al/Zn PP film as electrodes and dielectric. Its components are sealed with flame-retardant epoxy resin. It has cylindrical outline with high moisture resistance and stability.

Applications

Broadly applied to starting and running of AC single-phase motors at 50Hz(60Hz) frequency for washers and high efficiency compressors of refrigerators etc.

Technical Specifications Standard：IEC 60252-1:2001

Technical features&#65306

Climate type：40/70/21 or 40/85/21

Capacitance tolerance：± 5%

Insulation Resistance：≥3000S（MΩ·µF&#65289

Dielectric dissipation factor：tgδ≤0.002 (50Hz～100Hz)

Application requirements&#65306

Altitude：≤2000m Residual voltage in application :less than 10% of rated voltage.

Allowed maximum voltage: less than 1.1 times of rated voltage

Permissible maximum current: less than 1.3 times of rated current

rated voltage(VCA):200,250,300,370,400,440,450

nominal capacitance(uF):1, 1.2, 1.5, 2, 2.5, 3, 3.5, 4, 4.5, 5, 5.5, 6

6.5, 7,7.5, 8, 9, 10, 12.5, 14, 15, 16

Package & Delivery

With standard export carton or according to customer's requirement.

We can ship all over the world by DHL,UPS,FedEx and EMS.We offer short time delivery,shipment will be complete often 3~7 days after receive of deposit.

Advantages of our company

1.For large orders,we will give you a large discount!

2.You pay the factory price!!!

Because we are a direct manufacturer of brand new capacitors,that is why our price is so competitive!

3.Customer's desin and logo are welcome!

4.Small order acceptable.

5.All email will be answered within 24 hours.
