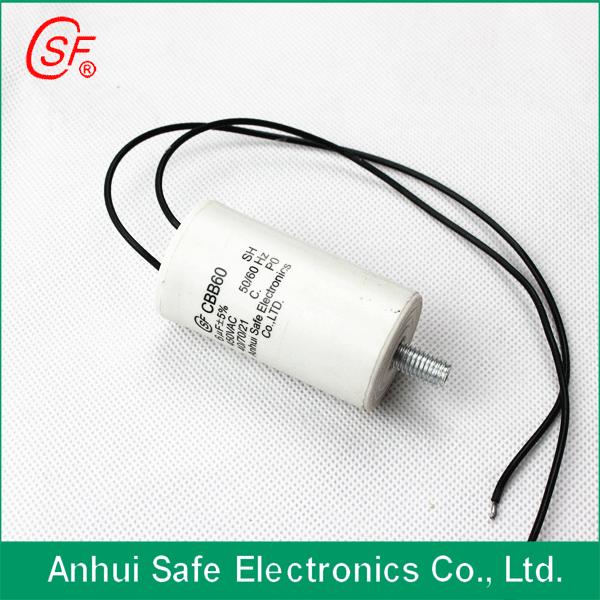

CBB60 generator capacitor
Specifications
- Brand
- SaiFu/CSF/OEM
- Origin
- China(mainland)
- Certifications
- ISO9001,SGS,CQC
- MOQ
- 500pcs
- Packaging
- with carton
- Price Term
- EX-Work
- Payment Term
- T/T,LC,WEST UNION
- Supply Ability
- 8000pcs/day
- Delivery Time
- 3 to 7 days
- Loading Ports
- Shanghai/Ningbo
CBB60 generator capacitor is a Passive Components product. Key specs — Brand: SaiFu/CSF/OEM; Origin: China(mainland); Certifications: ISO9001,SGS,CQC; MOQ: 500pcs.
Product Description
The capacitor takes heavy-edge metallized Al/Zn PP film as electrodes and dielectric. Its components are sealed with flame-retardant epoxy resin. It has cylindrical outline with high moisture resistance and stability.
Applications Broadly applied to starting and running of AC single-phase motors at 50Hz(60Hz) frequency for washers and high efficiency compressors of refrigerators etc.
Technical Specifications Standard:IEC 60252-1:2001 Technical features:Climate type:40/70/21 or 40/85/21 Capacitance tolerance:± 5% Insulation Resistance:≥3000S（MΩ·µF） Dielectric dissipation factor:tgδ≤0.002 (50Hz～100Hz) Application requirements Altitude:≤2000m Residual voltage in application :less than 10% of rated voltage.
Allowed maximum voltage: less than 1.1 times of rated voltage Permissible maximum current: less than 1.3 times of rated current
