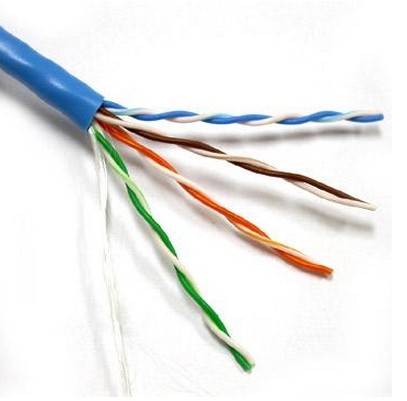

CAT6 network cable - 1-1-4 Specificaton & Trade Terms
| Model | 1-1-4 |
|---|
| Place Of Origin | china |
|---|
| Price Term | EX-Work |
|---|
| Payment Term | T/T |
|---|
Salesjycable[at]hotmail[dot]com
Quick Details
• Use: Computer
• color: normally grey or per order
• length: 305m/box
• Products Status: Stock
• Type: Power Cable
Packaging , 305meters/box
APPLICATION:
Category 5e is a twisted pair cable designed for high signal integrity with added specification over Cat 5 for far end cross talk. This cable is used for computer networks such as ethernet and is also used to carry many other signals (basic voice services, Token ring, ATM etc)
Specification :
CONDUCTOR:Bare copper wire 0.5mm diameter (AWG24)
INSULATION: Polyethylene 0.9mm diameter
TWISTING: 2 cores to the pair
CABLE LAY UP: 4 pairs to the core
SHEATH: PVC blue,
MINIMUM BENDING RADIUS: Installation 8D, Installed 4D
TEMPERATURE RANGE:
During operation -20°C up to +60 °C During installation 0°C up to +50 °C
DC LOOP RESISTANCE:
