Listing ID#10223690
ModelC6-46
CategoryVacuum Cleaner

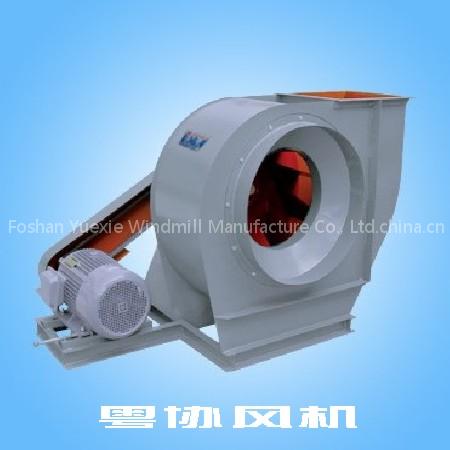

C6-46 Dust Exhausting Centrifugal Ventilator
Specifications
- Origin
- china
Quick answer
C6-46 Dust Exhausting Centrifugal Ventilator is a Vacuum Cleaner product. Key specs — Origin: china.
Product Description
Features of C6-46 Dust Exhausting Centrifugal Ventilator
| Model | Rotating Speed | Motor | Flow Rate | Total Pressure |
| (No) | (r/min) | (Kw-P) | (m3/h) | (Pa) |
| 3A | 3 | 2900 | 1242-3036 | 1525-1265 |
| 4A | 2.2 | 1450 | 1474-3591 | 710-596 |
| 5A | 5.5 | 1450 | 2870-6993 | 1173-978 |
| 6A | 7.5 | 1450 | 4961-12130 | 1687-1410 |
| 3 | 960 | 3286-7397 | 741-628 | |
| 4C | 5.5 | 2320 | 2352-5733 | 1822-1513 |
| 4 | 2030 | 2060-5030 | 1400-1162 | |
| 3 | 1810 | 1834-4473 | 1111-863 | |
| 2.2 | 1665 | 1688-4114 | 937-782 | |
| 1.5 | 1520 | 1541-3761 | 782-648 | |
| 1.1 | 1305 | 1323-3234 | 576-484 | |
| 5C | 7.5 | 1740 | 3444-8500 | 1708-1400 |
| 5.5 | 1620 | 3207-7823 | 1471-1214 | |
| 4 | 1390 | 2751-6720 | 1080-896 | |
| 3 | 1275 | 2524-6153 | 905-751 | |
| 2.2 | 1160 | 2292-5607 | 751-628 | |
| 2.2 | 1004 | 4597-5020 | 536-504 | |
| 1.5 | 2058-4174 | 608-555 | ||
| 6C | 7.5 | 1350 | 8423-11277 | 1410-1214 |
| 5.5 | 4618-7472 | 1470-1441 | ||
| 7.5 | 1255 | 9576-10416 | 1121-1050 | |
| 5.5 | 4284-8696 | 1265-1173 | ||
| 5.5 | 1160 | 7337-9680 | 1040-896 | |
| 4 | 3969-6417 | 1080-1071 | ||
| 4 | 1060 | 6609-8848 | 864-751 | |
| 3 | 3623-5862 | 905-896 | ||
| 3 | 965 | 6015-8054 | 720-617 | |
| 2.2 | 3298-5336 | 751-740 | ||
| 2.2 | 870 | 2978-7256 | 608-504 | |
| 8C | 18.5 | 1085 | 17824-21436 | 1554-1400 |
| 15 | 8794-16018 | 1687-1616 | ||
| 15 | 1015 | 15002-20080 | 1421-1224 | |
| 11 | 8232-13310 | 1471-1451 | ||
| 11 | 905 | 13388-17924 | 1121-968 | |
| 7.5 | 7340-11876 | 1173-1153 | ||
| 7.5 | 864 | 11330-14217 | 1050-988 | |
| 5.5 | 6988-9886 | 1020 | ||
| 7.5 | 796 | 11792-15792 | 875-751 | |
| 5.5 | 6458-10458 | 905-896 | ||
| 5.5 | 725 | 8306-14369 | 751-628 | |
| 3 | 5880-7093 | 751-761 | ||
| 4 | 625 | 9645-12915 | NaN-504 | |
| 3 | 5286-8555 | 608-597 | ||
| 10C | 37 | 1000 | 28245-37853 | 2171-1893 |
| 30 | 21315-25200 | 2264-2243 | ||
| 30 | 900 | 22922-25673 | 1822-1533 | |
| 22 | 12915-19215 | 1842-1832 | ||
| 22 | 800 | 22617-30293 | 1389-1214 | |
| 18.5 | 11466-20160 | 1451-1437 | ||
| 18.5 | 710 | 22050-26250 | 1050-957 | |
| 11 | 9450-19950 | 1153-1091 | ||
| 11 | 630 | 9041-23835 | 905-751 | |
| 7.5 | 560 | 8033-21210 | 710-597 | |
| 12C | 55 | 768 | 46830-51209 | 1687-1584 |
| 37 | 33947-42525 | 1873-1759 | ||
| 30 | 21000-29631 | 1914-1904 | ||
| 37 | 720 | 35931-48090 | 1605-1389 | |
| 30 | 19719-41328 | 1677-1638 | ||
| 30 | 670 | 33422-44730 | 1389-1204 | |
| 22 | 18344-29652 | 1451-1421 | ||
| 22 | 628 | 24255-32403 | 1276-1172 | |
| 15 | 628 | 17157-20711 | 1276-1286 | |
| 22 | 582 | 32214-38745 | 999-905 | |
| 15 | 15887-25683 | 1080-1070 | ||
| 15 | 530 | 26481-35459 | 875-751 | |
| 11 | 14511-23489 | 905-896 | ||
| 11 | 483 | 24098-26817 | 720-585 | |
| 7.5 | 13220-21378 | 751-740 | ||
| 7.5 | 435 | 19278-24192 | 587-567 | |
| 5.5 | 11907-16821 | 617-608 |
