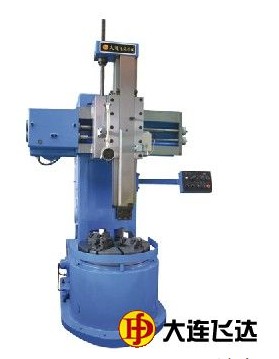

C577 single column fixed beam vertical lathe
Specifications
- Origin
- China
- Price Term
- EX-Work
- Payment Term
- T/T
C577 single column fixed beam vertical lathe is a Metal & Metallurgy Machinery product. Key specs — Origin: China; Price Term: EX-Work; Payment Term: T/T.
Product Description
Max.turning diameter(mm) 700 Table diameter(mm)600 Max.working height of workpiece(mm) 700 Max.weight of workpiece(t) 1.2 Max.cutting resistance(KN.m) 20 Max.torque(KN.m) 10 Travel of railhead horizontal(mm)420 Travel of railhead Vertical(mm) 600 Speed range of table(r/min,8steps) 38/88,76/88,135/158,176/315 Feed range of railhead(m/min) 5-80,stepless Rapid traveling speed of tool post(mm/min) 1800 Sectional size of tool bar(W*H)(mm) 30*40 Weight of machine(about t) 4.5 Power of feed motor(kw) 2.2 Power of main motor(kw) 11KW/1460r/min,14KW/2920r/min Overall dimensions(L*W*H) 1938*1742*2700
