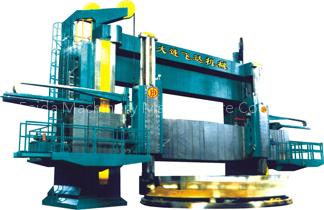

C5280 heavy duty lathe
Specifications
- Brand
- Dalian Feida
- Origin
- China
- Price Term
- FOB
Quick answer
C5280 heavy duty lathe is a Business Services product. Key specs — Brand: Dalian Feida; Origin: China; Price Term: FOB.
Product Description
1.high precision
2.longlife service time
3.low and reasonable price
4.safe operation assures
5.customization accepted
Name | Value |
Max. turning diameter (mm) | 8000 |
Table diameter (mm) | 5700/6000 |
Max. working height of work-piece (mm) | 4000 |
Max. weight of work-piece (t) | 100 |
Travel of tool post Horizontal (mm) | -20~4400 |
Cutting resistance of right tool post (KN) | 80 |
Cutting resistance of left tool post (KN) | 63 |
Max. torque of table (KN·m) | 460 |
Travel of ram Vertical (mm) | 2000 |
Power of main motor (kW) | DC132 |
Rapid traveling speed of tool post (mm/min) | 4000 |
Table guide | hydrostatic |
Moving degrees limit of tool post (º) | -15~+30 |
Speed range of table (r/min) | 0.2~20 |
