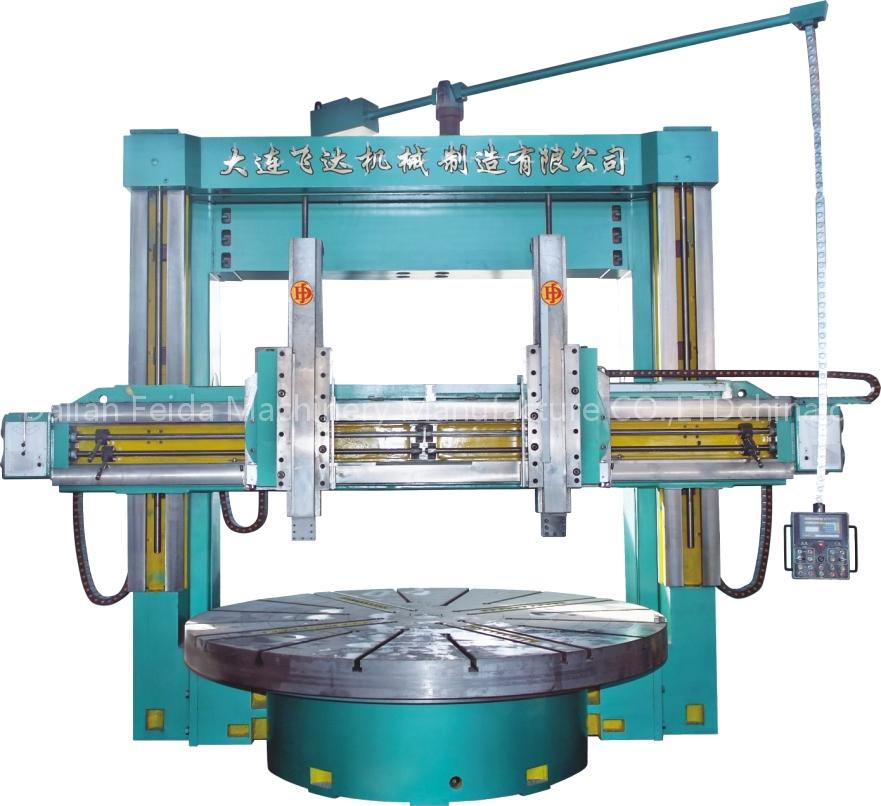

C5240 manual double column vertical lathe
Specifications
- Brand
- Dalian Feida
- Origin
- china
- Price Term
- FOB
C5240 manual double column vertical lathe is a Other Farm Machines product. Key specs — Brand: Dalian Feida; Origin: china; Price Term: FOB.
Product Description
The vertical lathe is suitable of the ferrous, nonferrous metal and some kinds of non-metal materials with hard alloy, high capacity and high speed steel tools. It can perform finely and roughly turning cylinder and inner holes, inner and outer taper, surface, and grooving.
II. Main technical specification of the vertical lathe
Name | Value |
Max. turning diameter (mm) | 4000 |
Max. working height (mm) | 1600/2000/2500/3150 |
Max. weight of workpiece (t) | 10/32 |
Table diameter (mm) | 2830/3200 |
Speed range of table (r/min) | 2~63 |
Speed-step of table | 16 steps |
Max torque of table (KN.m) | 63 |
Max cutting resistance of right tool post(KN) | 32 |
Max. cutting resistance of left tool post(KN) | 28 |
Travel of right tool post Horizontal (mm) | 2150 |
Travel of right tool post Vertical(mm) | 1000/1300/1500 |
Travel of left tool post (Horizontal) (mm) | 2150 |
Travel of left tool post (Vertical)(mm) | 1000/1300/1500 |
Feed range and speed-step of tool post (mm/min) | 0.24~145 18 steps |
Fast moving speed of tool post (mm/min) | 1550 |
Crossbeam fluctuation travel (mm) | 1300/1700/2200 |
Crossbeam fluctuation speed (mm/min) | 350 |
Moving degrees limit of tool post (°) | ±30 |
Cutting section of the tool bar (mm) | 40×50 |
Crossbeam fluctuation motor power (AC) (KW) | 7.5/11 |
Cutting feed two-speed motor power of left feeding-box (AC) (KW) | 1.3/1.8 |
Fast motor power (KW) | 2.2 |
Power of main motor (AC) (KW) | 55/75(max.weight of workpiece:30t) |
Weight of machine (t) | 39~52 |
