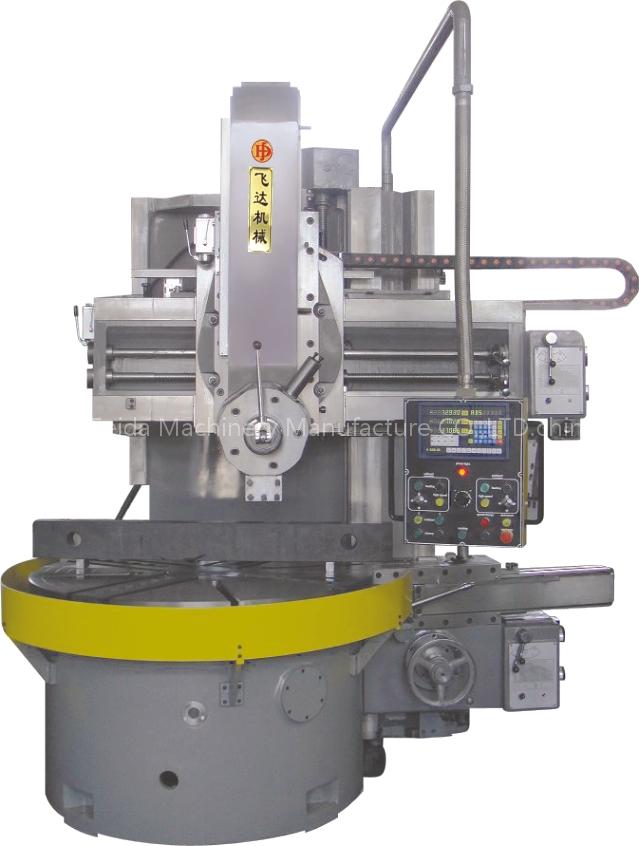

C5116 vertical lathe is a Other Farm Machines product. Key specs — Origin: China; Price Term: FOB.
Product Description
2)untill now,we have exported our products to
Italy,France,Germany,UK,Russia,Brazil,Indonesia and so on.
3)factory area:46,000 square meters including casting, machining, assemble workshops
4)Our casting workshop adopts lost foam to guarantee the size and precision of casting parts.
5)All the parts are performed heat treatment, natural failure, vibrating stress relief(VSR) to relieve internal stresses.
6)All the guide are performed quenching. The sliding surface of guide is treated with sticking plastic.
7)we implement assembly line,and the assemble workshop includes feed box team,gear box team,worktable team,hydraulic unit team,scrapping team,drilling hole team,power distrubition team,daubing and painting teamand test team.
Main technical specification
Name | Value |
Max. turning diameter (mm) | 1600 |
Max. working height (mm)Standard Increasing 200mm Increasing 200mm Incresing 200mm | 1000 1200 1400 1600 |
Max. weight of workpiece (t) | 5 |
Table diameter (mm) | 1400 |
Speed range of table (r/min) | 5~160 |
Speed-step of table | 16 |
Max. torque of table (KN.m) | 25 |
Max. cutting resistance of railhead (KN) | 25 |
Max. cutting resistance of sidehead (KN) | 20 |
Total cutting resistance (KN) | 40 |
Travel of railhead (Horizontal) (mm) | 915 |
Travel of railhead (Vertical) (mm) | 800 |
Travel of sidehead (Horizontal) (mm) | 630 |
Travel of sidehead (Vertical) (mm) | 900 |
Travel of crossbeam (mm) | 650/850/1050/1250 |
Feed range of railhead and sidehead (mm/min) | 0.8~86 |
Rapid moving speed of railhead and sidehead (mm/min) | 1800 |
Moving degrees limit of railhead(°) | ±30 |
Moving speed of crossbeam (mm/min) | 440 |
Power of main motor (kw) | 22 |
Overall dimensions (L×W×H) (mm) | 2830×2670×2810 (3010,3210,3410) |
Weight of machine (t) | 12.5 |
