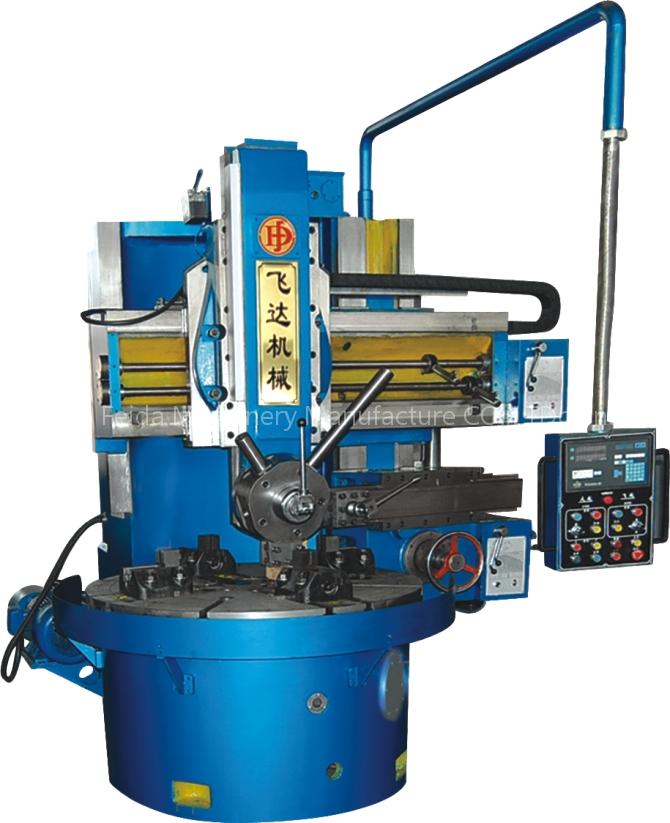

Name: C5112 manual lathe
Brand: Dalian Feida
SKU: C5112

Main use.

The C5112 manual lathe is suitable of the ferrous, nonferrous metal and some kinds of non-metal materials with hard alloy, high capacity and high speed steel tools. It can perform finely and roughly turning cylinder and inner hole, inner and outer taper, surface, and grooving.

Technical specifications of vertical lathe

Name	Value
Max turning diameter (mm)	1250
Max. working height of Standard model Max. working height of increasing to 200mm	1000 1200
Max. weight of workpiece (t)	3.2
Table diameter (mm)	1000
Speed range of table (r/min)	6.3~200
Speed-step of table	16
Max torque of table (KN·m)	17.5
Max cutting resistance of railhead (KN)	20
Max cutting resistance of sidehead (KN)	20
Total cutting resistance (KN)	35
Travel of railhead ( Horizontal) (mm)	700
Travel of railhead (Vertical) (mm)	650
Travel of sidehead ( Horizontal) (mm)	630
Travel of sidehead (Vertical) (mm)	900
Travel of crossbeam (mm)	650/850
Moving degrees limit of railhead (°)	±30
Feed range of railhead/sidehead (mm/min)	0.8~86
Rapid traveling speed of railhead/sidehead (mm/min)	1800
Traveling speed of crossbeam (mm/min)	440
Power of main motor (kw)	22
Overall dimensions (L×W×H) (mm)Standard model Increasing 200mm	2360×2270×2800 2360×2270×3000
Weight of machine(about t)	9
