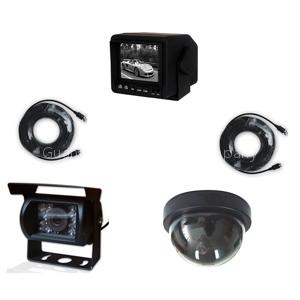

Bus rearview&surveillant system

CL-450DC2 The Monitor and cameras are used to make certain the driver of the vehicle is operating the vehicle correctly.

The monitor can been mounted at dashboard of the bus. a camera can be mounted exteriorly of the vehicle to make sure that the operator of the vehicle is operating the vehicle safely in relation to other vehicles on the road. the other camera can be mounted opposite with the passanger door. when the passenger door of the bus is opened, he driver can see the passenger door situation through the monitor ,and help any passenger(s) on and off to minimize accidents Item Technical Specification Image Device4.5" B/W CRT(11.4cm) TV SystemCCIR/EIA Deflect In Angle(Deg.)95 Resolution(TVLines)Horizontal:600/Vertical:400 Horizontal/Vertical Frequency(HZ)CCIR:15.625/50/eia:15.734/60 Input Voitage(VDC)11～32 Output Voitage(VDC)10.2+/-0.2 Power Consumption (A)Video Input/Output 1Vp-p+/-20% Anti-vibration capability 8G Operating Temperature(Deg.C)-20～+60 Camera PortDIN socket AVPortRCA socket Dimension(mm)160(W)X127(H)X117(L)without barcket Camera 1: Image Sensors: 1/4"B/W CMOS TV System: CCIR/EIA Effective Pixels: 352X288/320X240 Sensing Area(mm) 3.2X2.5 Resolution(TV Lines): 380 Horizontal Sync.Frequency(KHZ): 15.625/15.734 Vertical Sync.Frequency(HZ): 50/60 Video Output: 1Vp-p,75 Ohm Gamma Consumption: 0.45 AGC : Auto BLC : Auto S/N ratio: Better than 48dB Lens: F=3.6mm/F=2.0 Lens Angle(Deg.): 72° Current Consumption(mA) : 170 Power Supply(DCV) : 12 Operating Temperature(Deg.C) : -10～+70(RH 95% Max.) Storage Temperature(Deg.C) : -30～+80(RH 95% Max.) Camera 2: Image Sensors: 1/3" B/W CCD TV System: PAL/NTSC Effective Pixels : 512X582/512X492 Sensing Area(mm) : 4.9X3.7 Resolution(TV Lines): 420 Min.Lllumination(Lua/F1.2): 0 Horizontal Sync.Frequency(KHZ): 1/50 or 1/60～1/10,000 Vertical Sync.Frequency(HZ): 15.625/15.734 Video Output: 1Vp-p,75 Ohm Gamma Consumption: 0.45 AGC: Auto BLC: Auto S/N ratio: Better than 48dB Lens: F=3.6mm/F=2.0 Lens Angle(Deg.) : 95° Current Consumption(mA): 200 Power Supply(DCV) : 12 Operating Temperature(Deg.C) : -20～+70(RH 95% Max.) Storage Temperature(Deg.C): -40～+80(RH 95% Max.)
