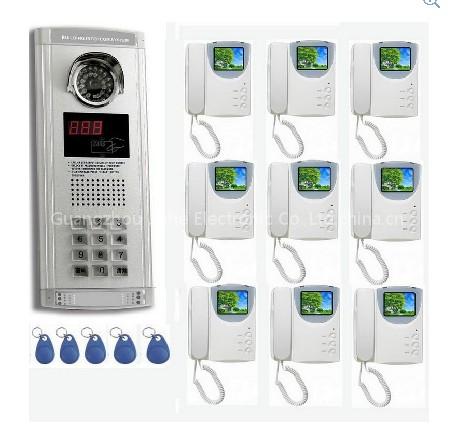

Building Video Intercom System

Quick DetailsPlace of Origin: Guangdong China (Mainland) Brand Name: Darong Model Number: VPS-M8A363C

Camera: Color Power: DC18V Certificate:: CE RoHS

Material for outdoor station:: Aluminum alloy

Packaging & DeliveryPackaging Detail: 6pcs/carton carton size: 37*31*26cm

Delivery Detail 7 days

Specifications 1.CAT-5E cable is used for connection 2. Four wires ( video, audio, GND, +18V) 3.

Unlock by passward or ID card from outside The Building Video Intercom System is special for use in small residential buildings; By the Metal case of the outdoor camera, you will be reassured of its anti-vandalism performance. &nbsp It has more function than normal outdoor cameras by addding a keypad and card reader, the owner can open the door by inputting password, or swiping a programmed ID card to unlock the door. &nbsp Most prominently, the system is FOUR-WIRE Only from outdoor camera to Inside House Unit.

And if you make the system less than 50 meters in cabling, Computer LAN cable is applicable to the system. &nbsp It supports 15 floors at most and 9 houses at each floor. &nbsp &nbsp Features 1)Four wires connection between outdoor camera and indoor monitor. 2)Lan Cable applied for less than 50 meters. 3)Night Vision sources: Infrared.

4)Camera resolution: 420TVL 5) Maximum User capability: 135 houses. 6) password and ID card to open the door. 7) Handset and handfree monitors are compatible in one system 8) Black and white and color monitors are also compatible in one system &nbsp In the standard packing, cables are not included.
