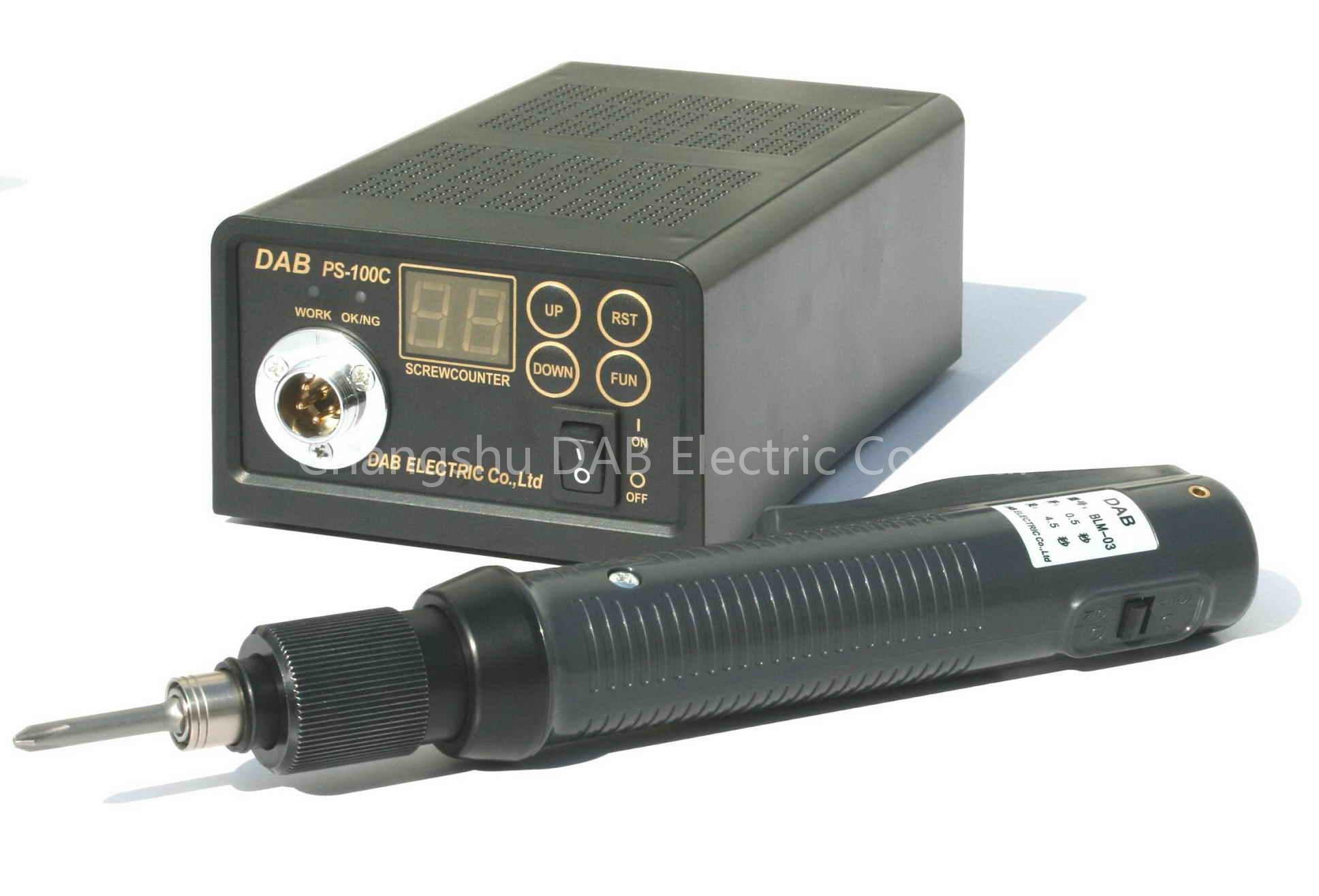

Brushless Electric Screwdriver BLM-25

▌PRODUCTSBLM Series Brushless Electric ScrewdriversBLM-25 Normal Model Adapter PS-100ApplicationTV, Air conditioner, Washing Machine, Diancizao, Microwave ovens, Vacuum Cleaner. Features1．High quality brushless motor guarantees outstanding output torque and durability without maintenance.

2．Turning on and off by semi-conductor almost makes permanent switch.3．Stable and precise torque makes it high repeatability to provide high performance assembly ability.4.

The torque is controlled by the mechanical auto-clutch which ensures output torque precision within tolerance of±5%.5．Having an auto-break function when the screw is tightened, can reduce 80% noises and 85% energy loss.6．The usage of 30v DC ensures safety.7．The advanced clutch and automation device lower the impact of strike while fully seated to reduce the fatigue.8．The shape integrates the design of the human engineering, gives more comfortable feelings to the operators and improves their work efficiency.

Operation and Model Model Start Torque Speed Screw(mm)

kgf.cm lbf.in N.m rpm Machine Tapping

BLM-25 Lever 7-25 6.1-22 0.7-2.5 1000 2.0-5.0 2.0-4.0

SizeBits Torque Control
