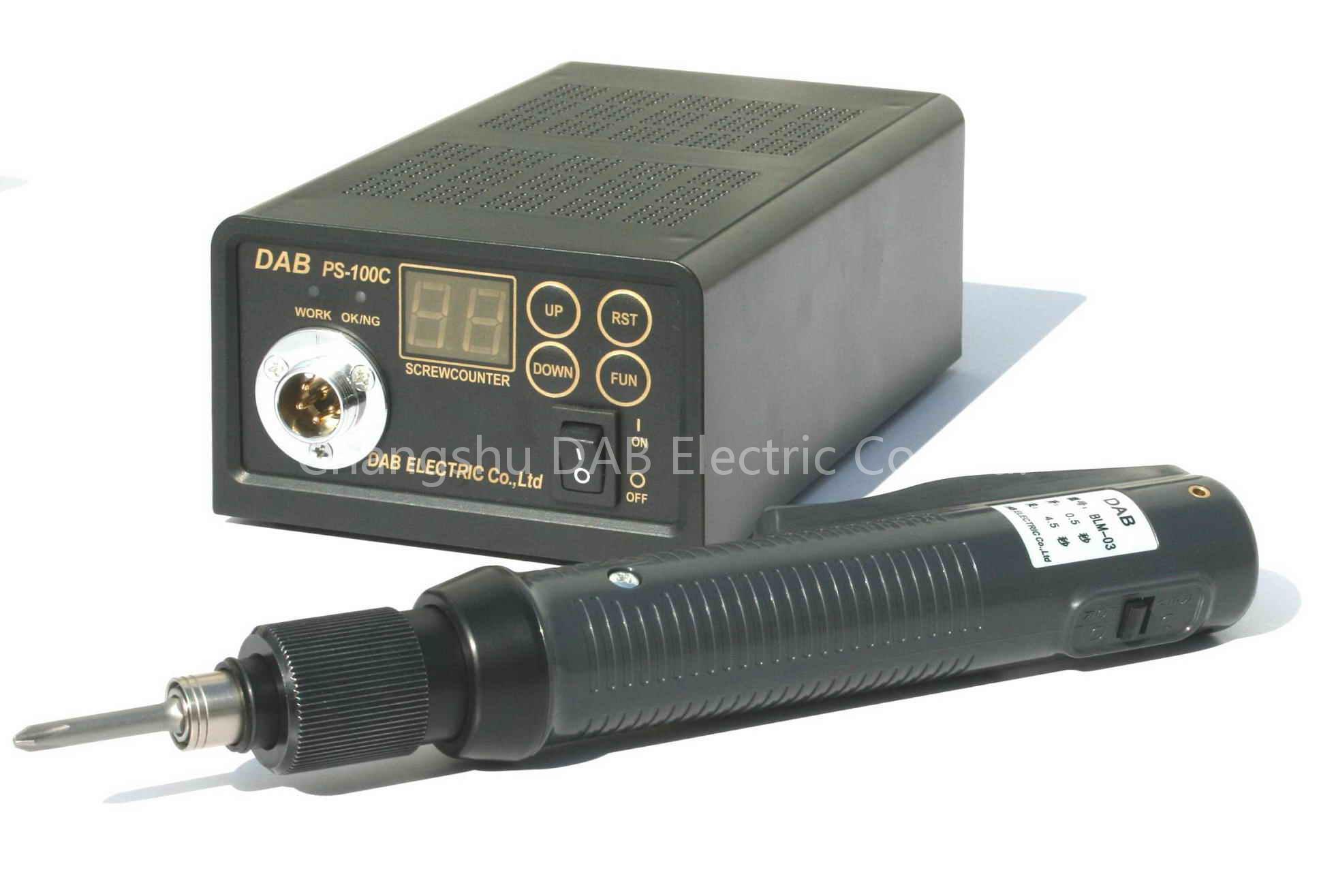

Brushless Electric Screwdriver BLM-03

??PRODUCTSBLM Series Brushless Electric ScrewdriversBLM-03 Normal Model Adapter PS-100

ApplicationMobile telephone, Digital camera, Notebook computer, Hard disk, LCD display, CD , DVD, Car electronics.

&nbsp Features1．High quality brushless motor guarantees outstanding output torque and durability without maintenance.&nbsp 2．Turning on and off by semi-conductor almost makes permanent switch. 3．Stable and precise torque makes it high repeatability to provide high performance assembly ability. 4.

The torque is controlled by the mechanical auto-clutch which ensures output torque precision within tolerance of±5%. 5．Having an auto-break function when the screw is tightened, can reduce 80% noises and 85% energy loss. 6．The usage of 30v DC ensures safety.

7．The advanced clutch and automation device lower the impact of strike while fully seated to reduce the fatigue. 8．The shape integrates the design of the human engineering, gives more comfortable feelings to the operators and improves their work efficiency. &nbsp

Operation and Model

Model

Start

Torque

Speed&nbsp

Screw(mm)

kgf.cm

lbf.in

N.m

rpm

Machine

Tapping

BLM-03

Lever

0.3-3

0.3-2.6

0.03-0.3

1000

1.0-2.0

1.0-1.7

&nbsp Size

&nbsp Bits

&nbsp

Torque Control

&nbsp
