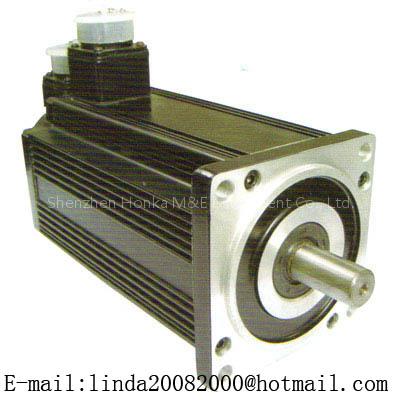

Brushless DC Motor (200 to 1500W)

General Parameters: 1. Frame Size(mm): 42× 42, 60× 60, 80× 80, 92× 92, 123123, 142× 142, Dia 522. Power range: 10W, 25W, 50W, 75W, 100W, 150W, 200W, 250W, 300W, 350W, 550W, 750W, 1100W, 1500W, 2200W3. Speed range: 1000rpm to 40000rpm4. Voltage Class DC(V): 12V, 24V, 36V, 48V, 110V, 220V, 380V5. Control Mode: H-Hall sensor E-Back EMF6.

Mounting: A-FC B-Lie downProduct characteristics: 1. High power density. 2. Good mechanical properties. 3. High efficiency. 4. High reliability, 2.5 times over load design. 5. Long life with continuous Work 6. To facilitate maintenance. 7. Smooth operation, lower noise. 8.

Convenient in speed adjusting, when motor used with our company's brushless motor drive system, this unit will a good replacement for the traditional induction machine with transducer.
