Brinell Hardness Tester is a Battery Testers product. Key specs — Origin: China.
Product Description

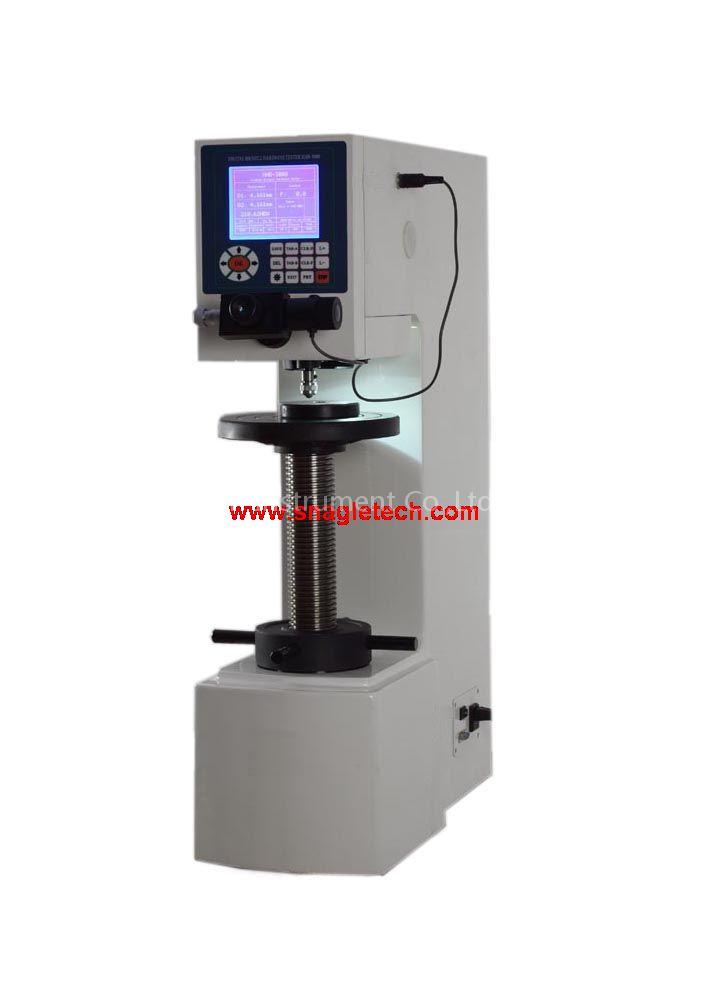

XHB-3000 Brinell hardness tester is as the largest indentation among all the brinell hardness testers, which is able to reflect materials’comprehensive performance without influence by specimen’s organization microsegregation and discontinuity.
XHB-3000 Brinell Hardness Tester is widely used in the area of metallurgy, forging, casting, unhardened steel in the industry of non-ferrous metal, as well as in the laboratory, university and R&D institution. Testing range:(8~650)HBW
Test Force: 612.9N(62.5Kgf), 980N(100Kgf), 1226N(125Kgf), 1839N(187.5Kgf), 2452N(250Kgf), 4900N(500Kgf), 7355N(750Kgf), 9800N(1000Kgf), 14700N(1500Kgf), 29400N(3000kgf)
Accuracy
HardnessRange( HBW) Max divergence% Repeatability%
≤125 ≤3.5 ≤3.5
125<HBW≤225 ±2.5 ≤3.0
>225 ±2.0 ≤2.5
Max Height of specimen: 225mm
Max width of specimen: 135mm
Magnification of micrometer eyepiece: 20×
Division value of micrometer eyepiece's drum wheel: 0.00125mm
Power: AC220V
Accessories: Testing tables (Large, small, "V")
Steel Ball Indenter(Φ2.5mm, Φ5mm, Φ10mm)
Micrometer eyepiece 20×
Standard blocks
