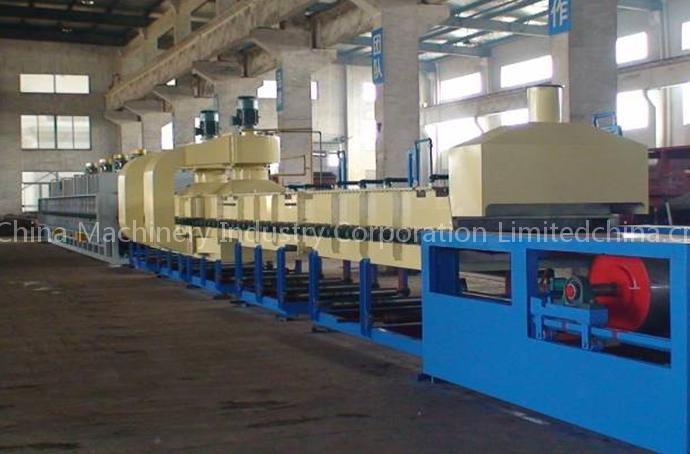

Bright annealing furnace

Continuous bright annealing furnace 1.Continuous bright annealing furnace 2.Turnkey project of complete line 3.Powerful working team and technology support 4.Cooperated with Best China Metallurgical Design Institute 5.Excellent user achievement and good positive feedback challenging project quotation 7.Lifelong after-sales & maintenance support Specifications: The furnace is designed based on following requirements and parameter 1.Designing basis 1.1 Furnace usage:Bright annealing & bright normalizing low-carbon steel tubes and low-alloy steel tubes (seamless and welded) 1.2 Steel grade of tubes: Low-carbon steel:ST34, ST35, ST37, ST44, ST45, ST52 Low-alloy steel:16Mn Al,25Mn, etc.

1.3 Tube size: OD: Ф10~100㎜ WT: 0.6-5㎜ Length: 4.5~10m Tube size in test:ODФ60mm×WT2.5㎜×L8m 1.4 Productivity:2T/h Output:Working based on 300days/year, 24hours/day: 2T/h×7200h/year=14400T/year The year utilization is 70% 14000tons/year
