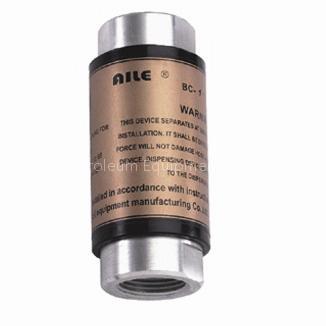

Breakaways

Breakaways Features:1) Designed to be installed on fuel dispensing hoses, andwill separate when subjected to a designed pull force2) The dual valves seat automatically stops the flow of fuel and limiting any fuel spillage, while protecting the dispensing equipment3) For proper operation, the Aile BC-YC 3/4" should be installed with a straightening hose with a minimum length of 9"4) The Aile BC-YC 1" should be installedwith a minimumlength of 12"5)

Materials:a) Body: aluminumb) Main seals: vitonc) Guide and poppet: POMd) Protective sleeve: PVC6) Ordering specifications:a) BC-YC 801-804b)

Sizes: NPT3/4" x NPT3/4", BSP3/4" x BSP3/4", NPT1" x NPT1",BSP1" x BSP1"c) Weights: 230g, 230g, 380g, 380g7) Pull force: the Aile BC-YC 3/4" will break away with a pull force 250 Ibs ±5%, the Aile BC-YC 1"will break away with a pull force 300 Ibs ±5%8) Certainty of operation: designed to be replaced after separation,instead of reassembled, to protect against reassembly errors9) Unique double-poppet design: features low pressure drop10) Flow rates:0-60L/min (3/4"), 0-120L/min (1")11) Working pressure: 0.18MPa12) Low pressure drop: the integral check valve design allows forminimal pressure drop for faster, high-volume fill-ups13) 100% factory tested

Outer packing:100pcs/ctn, 50pcs/ctn

Carton dimensions: 26.8 x 48 x 26cm (100pcs), 29 x 29 x 30cm (50pcs)N.W.: 23kg, 19kgG.W.: 26.8kg, 22kg
