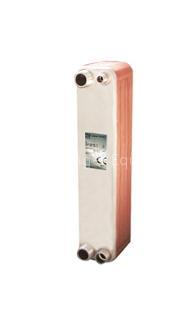

Brazed Plate Heat Exchanger

Specifications

Brand: Baode
Origin: China

Request Quote

Quick answer

Brazed Plate Heat Exchanger is a Refrigeration & Heat Exchange Parts product. Key specs — Brand: Baode; Origin: China.

Product Description

BL20 N means number of plates
. Length (mm): 310
. Width (mm): 76
. Thickness (mm): 10+2.3N
. Weight (kg): 1.0+0.08N
. Channel volume (L): 0.018(N-2)
. Exchange area (m2): 0.020(N-2)
. Working pressure: 3.0Mpa
. Testing pressure: 4.5Mpa
. Working pressure: -160grC ~ 225grC
