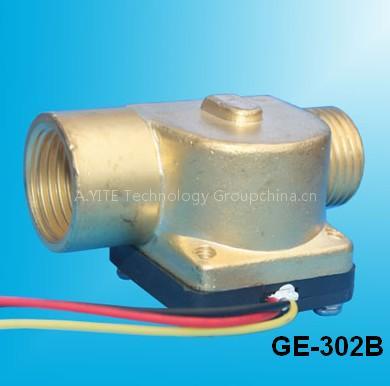

Brass Water Flow Sensor 3% accuracy

The flow sensor is produced by Brass matrail, stability and sensitive, widely used in HVAC systerm, water heating systerm, water treatment systerm, to calculate the flow rate.

　

Specification:

1. Brass Material, High Stability

2. Pipe Size: G1/2", G3/4"

3. Flow Range: 1L/mim ~ 30L/min ~ 60lL/min

4. Voltage: DC3V ~ DC18V DC5V is standard

5. Max Current: 15mA

6. Pulse duty factor: 50%

7. Accuracy: ±3%

8. High Level of Pulse Output: >4.5V (DC5V)

9 Low Level of Pulse Output: <0..5V (DC5V)

10. Max Pressure: 20Bar

11 . Hall Component, made in Japan
