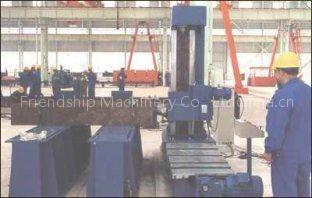

Box column end face milling machine

It’s composed by milling station, elevate column, work table, main body, feeding system, electrical system, guides protector, cutter, etc. This machine is used to mill the end profile of H beam or box column, max job profile is 1200x1500mm, min is 300x200mm.

Mill motor power: P=5.5KW;1440rpm Overall size: L×W×H=3745×1475×2490mm Sliding table size: L×W=1200×750mm Sliding table stroke: L=1500mm Table feeding speed: V=54.8～548mm/min Table return speed: V=822mm/ min Horizon feeding motor power: P=3Kw/4Kw；　960／1500rpm Vertical feeding motor power：P=1.5KW；　1400rp Cutter dia.：D=200～320mm Milling station spindle rev.：n=125～630rpm Spindle extend stroke：L=80mm Vertical feed speed：V=53～530 mm/min Station elevate speed：530mm/min
