Listing ID#10160072
ModelPST-BC101
CategorySurveillance Products
Quick answer
Box Camera is a Surveillance Products product. Key specs — Origin: China; Price Term: FOB.
Product Description

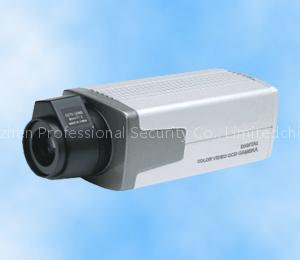

Name: Box Camera
Description:
Item No. | PST-BC101C | PST-BC101B | PST-BC101A | PST-BC101 |
Image Sensor | 1/3"Sony | 1/4" Sony | 1/3" Sharp | 1/4" Sharp |
Signal System | PAL/NTSC | |||
pixel | PAL:500(H)?82(V) NTSC:510(H)?92(V) | |||
Horizontal Resolution | 420 TV Line | |||
Min. illumination | 0.000LUX/F1.2 (LED on) | |||
Lens mount | CS | |||
Electronic Shutter | PAL: 1/50~1/100,000ses ; NTSC:1/60~1/100,000ses | |||
S/N Ratio | ?/SPAN>48db | |||
Video Output | 1Vp-p/75 O | |||
Audio Output | N | |||
AGC | ON/OFF | |||
White Balance | Auto | |||
Backlight Compensation | Auto | |||
Gamma Characteristic | =0.15 | |||
Sync. System | Internal | |||
Auto Iris Control | Video/DC Switchable( optional) | |||
IR Leds | N | |||
IR View Distance | N | |||
Power Supply | DC 12V | |||
Operation Temperature | -10/SPAN>C ~ + 50/SPAN>C | |||
